BJB Anschlusselement für Nichia COB-B Familie 19x16mm, Type 036-048-060-072, BJB Anschlusselement für Nichia COB-B Familie 19x16mm, Type 036/048/060/072 60803

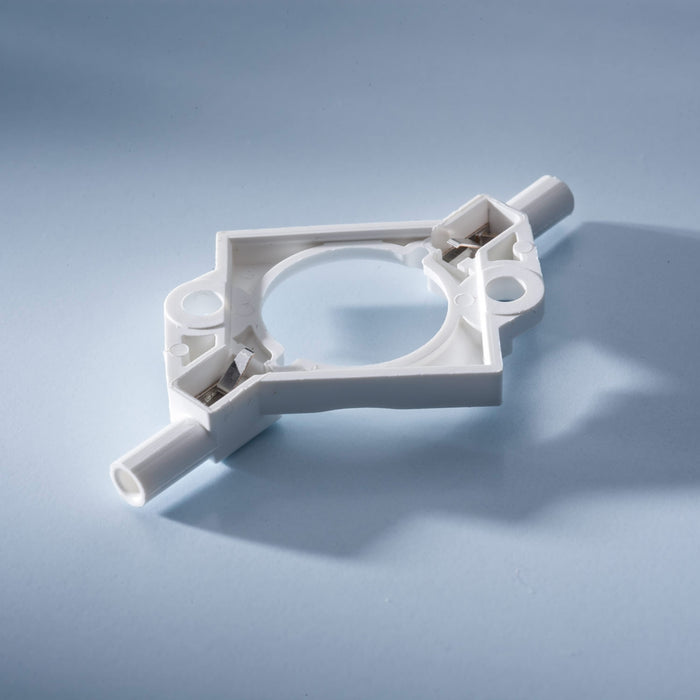

BJB connection element for Nichia COB-B family 19x16mm, type 036-048-060-072

by BJB

Fast and efficient cabling via push-wire contacts

Easy replacement of LED modules
Fast, solderless installation
Optimal heat management

$2.00 - $2.00

$2.00

$2.00 - $2.00

$2.00

Availability:

in stock, ready to be shipped

Shipping and price information

13,90€ to UK and within the EU.
All countries/shipping rates.

Taxes and duties may apply outside the EU.

Prices incl. VAT and plus shipping. Comparison prices and discounts refer to the manufacturer's recommended retail price.

Payable with PayPal, ApplePay, AmazonPay, Mastercard, Visa, SOFORT

BJB connection element for Nichia COB-B family - Optimal connection to your lighting solutions

The BJB connection element offers an easy-to-use and flexible solution for fast and efficient wiring of your Nichia COB-B LEDs. With excellent thermal management for long-lasting operation and thoughtful features such as easy LED module replacement, this product is a versatile companion for your lighting projects

Maximum efficiency and optimal management with BJB

The BJB connection element for Nichia COB-B family enables fast and efficient wiring of your LEDs via push-wire contacts. Safe and effective heat dissipation is ensured by the use of high-quality PBT in the housing. This not only supports the longevity of your LEDs, but also their optimal light output.

Product features at a glance

Efficient heat management: Excellent heat dissipation for long-term operation
Push-wire contacts: Quick and easy wiring
Easy replacement: Convenient replacement of LED modules
Material: Robust PBT housing and CuSn contacts
Compatibility: Suitable for Nichia COB-B LEDs of series 036/066/110 and 121

Advantages of the BJB product family

Screw fixing: No soldering necessary, fixation with M3 screws
Max. Torque: For screw mounting 0.6Nm
Stripping length: 6+1mm
Cable cross-section: 0.25 - 0.5mm²

Please always observe the correct polarity of your LEDs when installing the connection element.

BJB - Your partner for innovative lighting management

As a renowned manufacturer, BJB offers a wide range of products and solutions for professional lighting management. Years of experience and a broad knowledge of the industry distinguish BJB - and we at LUMITRONIX are proud to be a distributor for BJB and to offer our customers attractive conditions and experienced service.

FAQ about BJB mounting bracket

Is the connection element also suitable for other COB LEDs?
The connection element is specially designed for the Nichia COB-B series and is therefore optimally matched to it.
Do I have to do any soldering work during installation?
No, the BJB mounting bracket can be fixed with M3 screws, soldering is not necessary.
Which cables can I use?
The connection element is designed for cable cross-sections of 0.25 - 0.5mm².

At LUMITRONIX, we offer a wide range of high-quality LED products and solutions. Our goal is to create innovative, sustainable and energy-efficient lighting technology that benefits not only our customers but also our environment. Benefit from our experience, knowledge and passion for lighting technology.

Technical Details
SKU	60803
Brand	BJB
Manufacturer code	47.316.3001.50
Size (L x W x H)	1.9 cm x 1.6 cm x 0.3 cm
Weight	0.001 kg
Categories Accessories & more components Nr. 25 in Assembly, Connection, Soldering Nr. 27 in Other Accessories (e.g. Connectors & Circuit Boards) Preisautomatik: Niedrigpreisartikel
Data sheet BJB Connector element for Nichia COB-B family 19x16mm, type 036066110121 (PDF)
