Eaglerise Konstantstromquelle (IP65), 350mA 95040

Eaglerise constant current source (IP65)

by Eaglerise

230V input (not suitable for retrofit LED lamps)

Optimal for HighPower LEDs
Stable performance with varying input voltage
230V input, not for retrofit
Robust IP65 classification

IP65 protected constant current source with 700mA.

IP65 water and dust protected
Constant current source with 700mA
From renowned manufacturer Eaglerise
Ideal for power source applications

$10.00 - $10.00

$10.00

$10.00 - $10.00

$10.00

Availability:

in stock, ready to be shipped

Availability:

Sold out

Quantity

Shipping and price information

13,90€ to UK and within the EU.
All countries/shipping rates.

Taxes and duties may apply outside the EU.

Prices incl. VAT and plus shipping. Comparison prices and discounts refer to the manufacturer's recommended retail price.

Payable with PayPal, ApplePay, AmazonPay, Mastercard, Visa, SOFORT

Newer model available

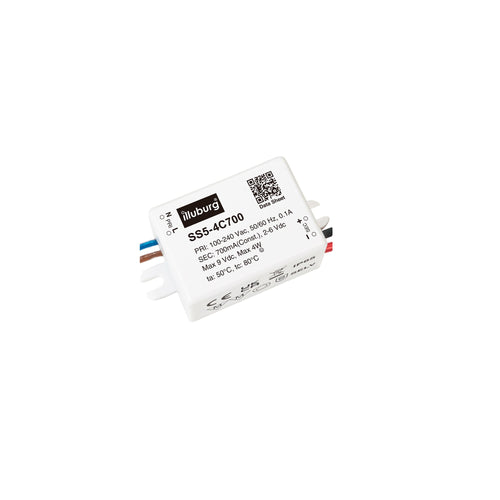

illuburg Konstantstromquelle 700mA (IP65) 40675

illuburg constant current source 700mA (IP65)

$10.00

View product

Accessories - Editorially selected

Wago 221-413 COMPACT Verbindungsklemme 3-polig 32443

Wago 221-413 COMPACT connection terminal 3-pin

$1.00

View product

Wago 224-112 Leuchtenklemme 2-polig 32445

Wago 224-112 light terminal 2-pin

$1.00

View product

Netzkabel mit Eurostecker, 1.5m, weiß 59096

Power cord with Euro plug, 1.5m, white

$2.00

View product

Wago 221-412 COMPACT Verbindungsklemme 2-polig 32442

Wago 221-412 COMPACT connection terminal 2-pin

$1.00

View product

Eaglerise constant current source: professional solution for HighPower LEDs

The Eaglerise constant current source is a safe and efficient solution for operating HighPower LEDs. For tinkerers and small businesses, this item offers the possibility of supplying up to 3 LEDs with constant current in an uncomplicated and professional way, independent of the fluctuations of the input voltage

Eaglerise: a name that stands for quality and reliability

Eaglerise is known for its high-quality and durable LED products. The constant current source is at the top of the product family because its constant power supply ensures stable and efficient operation of your LEDs.

Suitable for all HighPower LEDs

The constant current source from Eaglerise is specially designed for the operation of HighPower LEDs. It offers an easy-to-use and safe solution, especially when the input voltage is not constant, for example in the automotive sector or with alternating current. The input is protected against polarity reversal, which makes operation even safer.

Technical data of the 350mA variant:

Minimum input voltage: 100VAC
Maximum input voltage: 240VAC
Output current: 350mA
Output voltage: 0.5V - 10VDC
Output current tolerance: <5%
Dimensions: 38x26.4x21mm
Protection class: IP65
Operating temperature: -40°C to 75°C

Technical data 700mA variant:

Minimum input voltage: 100VAC
Maximum input voltage: 240VAC
Output current: 700mA
Efficiency: approx. 50%
Output voltage: 0.5V - 4VDC
Output current tolerance: <3%
Dimensions: 38x26.4x21mm
Protection class: IP65
Operating temperature: -40°C to 75°C

FAQ about the Eaglerise constant current source

How many LEDs can be operated with the constant current source?
The 350mA version can operate up to 3 high-power LEDs. At higher operating voltages, only 2 LEDs are possible. The 700mA variant is suitable for operating 1 LED.

What happens if the constant current source gets too hot?
The constant current source has thermal protection. In case of overheating, it automatically regulates the current downwards to ensure safe continuation of operation.

Where should the power source best be switched?
To ensure trouble-free operation, it is advisable to switch the constant current source only on the primary side.

About LUMITRONIX® and our business services

We at LUMITRONIX have been a leading supplier of high-quality LED products for 20 years. Our business customer service offers you attractive wholesale conditions, specialised high-end production lines and a wide range of LED modules and components. You have come to the right place if you are looking for individually developed and produced LED solutions.

Technical Details
SKU	95040
Brand	Eaglerise
Manufacturer code	SLP03SS
Power (W)	3.0 (W)
Electric Current (mA)	350 (mA)
Protection class	IP65
Size (L x W x H)	3.8 cm x 2.64 cm x 2.1 cm
Weight	0.05 kg
Categories Nr. 8 in Constant Current Sources Nr. 32 in Power supplies & Control units
Data sheet: 95040 (PDF)
