Fischer Elektronik Wärmeleitkleber, WLK DK 10, 2x5ml pic2 31987

Fischer Elektronik thermally conductive adhesive

by Fischer Elektronik

Excellent for high-power LEDs

  • Secure bonding of electronic elements
  • Thermally conductive two-component adhesive
  • Aluminium oxide-filled
  • Temperature-resistant and impact-resistant

Excellent for high-power LEDs

  • Fast heat conduction
  • Ideal for high-power LEDs
  • For metal, glass and ceramics
  • High-temperature resistant
$20.00 - $23.00
$23.00
$20.00 - $23.00
$23.00
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Shipping and price information

13,90€ to UK and within the EU.
All countries/shipping rates.

Taxes and duties may apply outside the EU.

Prices incl. VAT and plus shipping. Comparison prices and discounts refer to the manufacturer's recommended retail price.

Payable with PayPal, ApplePay, AmazonPay, Mastercard, Visa, SOFORT

Accessories - Editorially selected

Fischer Elektronik thermal conductive adhesive: High performance for your high-power LEDs

The WLK DK 10 thermally conductive adhesive from Fischer Elektronik is a thermally conductive two-component adhesive optimised for the secure and thermally conductive bonding of high-power LEDs and mechanical components. The excellent mixing ratio and outstanding thermal conductivity make it the ideal solution for a wide range of applications

Fischer Elektronik, a German manufacturer of electronic components, is distinguished by its many years of experience and expertise. With its focus on quality and performance, the company offers innovative and high-quality products for various industries and applications.

Properties of the heat conductive adhesive

Fischer Elektronik's thermal conductive adhesive provides an excellent solution for the heat dissipation of electronic components. Whether metals, glass, ceramics or plastics, this product can be safely applied to many different materials.

  • Thermal conductivity of 1 W/mK
    • 1
  • :1 mixing ratio for optimum performance
  • Working range from -50° C to +145° C
  • Curing time: approx. 16 hours at room temperature, 4 hours at 60° C
  • Further processing after approx. 4-6 hours depending on the layer thickness
  • Processing time at room temperature approx. 30 min
    • Note: For maximum efficiency, use the thermal conductive adhesive sparingly. Although its thermal conductivity is better than air, it does not come close to that of the heat sink. The more contact the component to be cooled has with the heat sink, the more effective the heat conduction. Pay attention to the correct mixing ratio to ensure effective curing

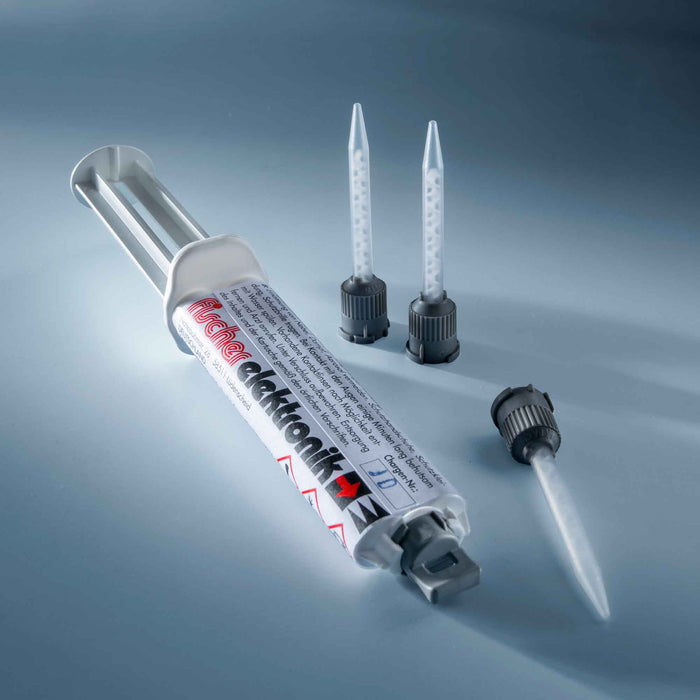

Scope of delivery
  • 1x 10 ml syringe
  • 3x Mixer WLK M 4
FAQ about Fischer Elektronik heat conductive adhesive
  1. What is the advantage of the heat conductive adhesive?
    The heat conductive adhesive offers an effective solution for heat dissipation in high-power LEDs, which significantly increases their performance and service life.

  2. What is the mixing ratio of the adhesive?
    The ideal mixing ratio of hardener and binder is 1:1.

  3. Can the heat conductive adhesive be used on different materials?
    Yes, the heat conductive adhesive is versatile and can be used on metals, glass, ceramic materials and almost all plastics.

Whether you are a small business, a tinkerer or a large company - at LUMITRONIX you will find the ideal LED lighting solutions for your needs. With over 20 years of experience and high-end production lines, we offer you an extensive range of LEDs and accessories. Make your lighting projects a success with us!

Technical Details
SKU
31987
Brand
Manufacturer code
WLK DK 10
GTIN
4062986001095
Size (L x W x H)
16.5 cm x 10 cm x 1 cm
Weight
0.02 kg
