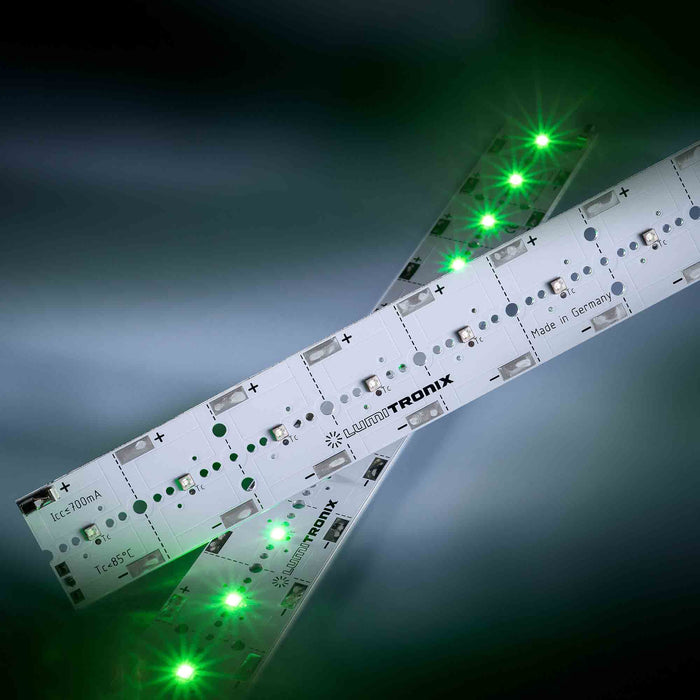

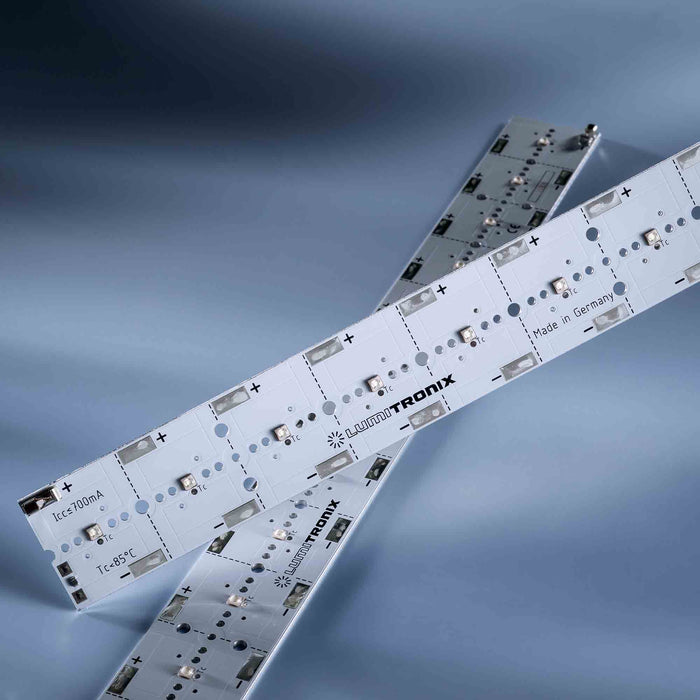

PowerBar V3 LED module aluminum 12x Osram Oslon SSL LEDs green 528nm

The PowerBar V3 LED module is a further development of the proven PowerBar family from LUMITRONIX®. The use of aluminum circuit boards significantly improves thermal management. An integrated NTC resistor also enables temperature monitoring via an external control unit. The bar consists of 12 divisible segments that can be used flexibly. Terminal blocks on the end segments facilitate solderless connection.

Product features at a glance

• Long-lasting LEDs: Equipped with high-quality LEDs from Osram
• Simple plug & play: Direct use without complicated assembly
• Divisible: Segmented use possible
• Optimal heat management: aluminum board for effective heat dissipation
• Dimmable: Control the brightness as needed
• NTC resistor: temperature monitoring possible
• Compatible with lens systems: For versatile applications
• Dimensions: 286 x 28.5 x 4.5 mm

Flexibility in application

Thanks to the segmental divisibility of the PowerBar V3 LED strips, customized lighting solutions can be realized. With pre-drilled holes for easy lens installation, the modules are compatible with Ledil and Carclo solutions, enabling a wide range of applications.

Optimal configuration with accessories

Create your own lighting solution with our PowerBar V3 system:

• Option 1: Heatsink, adhesive pad, mounting clip, Florentina rod lens, anti-glare protection
• Option 2: Heatsink, adhesive pad, mounting clip, plastic cover
• Option 3: Heatsink, adhesive pad, mounting clip, individual lenses

LUMITRONIX® - Made in Germany

As a German LED expert, LUMITRONIX® offers innovative and sustainable LED solutions. Thanks to in-house production and state-of-the-art technologies, customized solutions are possible. Our products are characterized by durability and quality. Discover our services for business customers .

FAQ about the PowerBar V3 LED module

1. How is the module connected?
   Thanks to the terminals on the end segments, a solder-free connection is possible.
2. Which lenses are compatible?
   Many Ledil and Carclo lenses can be used. A compatibility list is available.
3. Can I dim the module?
   Yes, the module is dimmable and can be adjusted to individual lighting requirements.
4. How is the cooling done?
   With a suitable heat sink and thermal pads, optimal heat dissipation is guaranteed.
