Kühlkörper für LED-Module bis 4W, schwarz 40016

Heat sink for LED modules up to 4W, black

LUMITRONIX

Ideally suited for linear SmartArray LED modules

  • For max. 4W LED modules
  • Surface: black anodised
  • Thermal resistance: 28.3 - 22.3 K/W
  • Ideal for SmartArray modules
€4,12 - €4,12
€4,12
€4,12 - €4,12
€4,12
Availability:
in stock, ready to be shipped
Versand und Preisinformation

Versandkostenfrei ab 89 €, sonst 5,70 € innerhalb Deutschlands

Mindermengenzuschlag bei unter 20 € Bestellwert: 2 € (werden direkt auf die Versandkosten aufgeschlagen)

Preise inkl. MwSt. und zzgl. Versand. Vergleichspreise und Rabatte beziehen sich auf die unverbindliche Preisempfehlung des Herstellers.

Entdecken Sie weitere Highlights von LUMITRONIX

LumiFlex700 ECO R2R LED Streifen, 24V, 5m, 2700K, Warmweiß, 3600lm, CRI95 pic2 38671
LumiFlex700 ECO R2R LED Streifen, 24V, 5m, 2700K, Warmweiß, 4700lm, CRI80 38667

LumiFlex700 ECO R2R LED strip, 24V, 5m

€33,53 - €41,93
€33,53 - €41,93
€33,53 - €41,93
€33,53
in stock
Energieeffizienzklasse F

Flexibility and efficiency Made in Germany - The LED strip for everyone The new LumiFlex700 Eco LED strip has been manufactured in a reel-to-reel...

View full details
€33,53 - €41,93
€33,53 - €41,93
€33,53 - €41,93
€33,53
LED-Schraube Pro, im Chromgehäuse, wassergeschützt, IP67, 12V, kaltweiß pic2 25001
LED-Schraube Pro, im Chromgehäuse, wassergeschützt, IP67, 12V, rot 25602

LED screw Pro, in chrome housing, waterproof, IP67

€3,32 - €3,32
€3,32
€3,32 - €3,32
€3,32
in stock

The expert choice: LUMITRONIX LED screw Pro, in a chrome housing, water-protected, IP67 The LUMITRONIX LED screw Pro sets new standards in term...

View full details
€3,32 - €3,32
€3,32
€3,32 - €3,32
€3,32
LumiFlex COB LED Streifen, 24V, 5m, 4000K, Neutralweiß, 4500lm, CRI90 pic2 39850
LumiFlex COB LED Streifen, 24V, 5m, 3000K, Warmweiß, 4200lm, CRI90 39849
Save 22% Save %

LumiFlex COB LED strip, 24V, 5m

€75,55
€75,55 - €75,55
€75,55
€58,74
€58,74 - €58,74
€58,74
in stock
Energieeffizienzklasse F

The LumiFlex Eco COB strip combines the flexibility of an LED strip with the high efficiency and light output of COBs. The LED strip offers a lumin...

View full details
€75,55
€75,55 - €75,55
€75,55
€58,74
€58,74 - €58,74
€58,74
Save 22% Save %
LumiFlex350 ECO R2R LED Streifen, 24V, 5m, 4000K, Neutralweiß, 3400lm pic2 36349
LumiFlex350 ECO R2R LED Streifen, 24V, 5m, 2700K, Warmweiß, 3045lm 36348

LumiFlex350 ECO R2R LED strip, 24V, 5m

€23,10 - €23,10
€23,10
€23,10 - €23,10
€23,10
in stock
Energieeffizienzklasse D

Flexibility and efficiency Made in Germany - The LED strip for everyone The new LumiFlex350 Eco LED strip has been manufactured in a reel-to-ree...

View full details
€23,10 - €23,10
€23,10
€23,10 - €23,10
€23,10
BackMatrix49 Performer LED-Modul, 49 LEDs, 28x28cm, 24V, 5000K neutralweiß, 1300lm pic2 36744
BackMatrix49 Performer LED-Modul, 49 LEDs, 28x28cm, 24V, 2700K warmweiß, 1160lm 36742

BackMatrix49 Performer LED module, 49 LEDs, 28x28cm, 24V

€20,92 - €29,33
€20,92 - €29,33
€20,92 - €29,33
€20,92
in stock

The high-performance BackMatrix49 LED module from LUMITRONIX - optimized for advertising and illuminated ceilings The BackMatrix49 Performer LED...

View full details
€20,92 - €29,33
€20,92 - €29,33
€20,92 - €29,33
€20,92
LumiFlex700 PRO R2R LED Streifen, 24V, 5m, 2700K, Warmweiß, 9050lm, CRI95 pic2 39227
LumiFlex700 PRO R2R LED Streifen, 24V, 5m, 2700K, Warmweiß, 13900lm, CRI80 39223

LumiFlex700 PRO R2R LED strip, 24V, 5m

€125,97 - €142,77
€125,97 - €142,77
€125,97 - €142,77
€125,97
Only 5 left!
Energieeffizienzklasse F

Flexibility and efficiency made in Germany The new LumiFlex700 Pro LED strip has been manufactured in a reel-to-reel process on our state-of-th...

View full details
€125,97 - €142,77
€125,97 - €142,77
€125,97 - €142,77
€125,97
MaxLine70 LED-Streifen, 70 LEDs, 28cm, Warmweiß, 2080lm, 700mA pic2 53317
MaxLine70 LED-Streifen, 70 LEDs, 28cm, Warmweiß, 2080lm, 24V 53313

MaxLine70 LED strip, 70 LEDs, 28cm

€25,13 - €25,13
€25,13
€25,13 - €25,13
€25,13
in stock
Energieeffizienzklasse D

Discover the LUMITRONIX MaxLine70 LED strip for unique lighting solutions An innovative approach to LED lighting solutions - our MaxLine70 LED str...

View full details
€25,13 - €25,13
€25,13
€25,13 - €25,13
€25,13
MultiBar24 LED-Streifen, 24 LEDs, 50cm, 24V, Warmweiß, 335lm pic2 50857
MultiBar24 LED-Streifen, 24 LEDs, 50cm, 24V, Neutralweiß, 350lm 50856

MultiBar24 LED strip, 24 LEDs, 50cm, 24V

€8,32 - €8,32
€8,32
€8,32 - €8,32
€8,32
in stock
Energieeffizienzklasse D

MultiBar24 LED strips from LUMITRONIX: versatile, efficient and guaranteed high performance! LUMITRONIX presents the latest edition of its well-...

View full details
€8,32 - €8,32
€8,32
€8,32 - €8,32
€8,32
LumiFlex700 PRO Sunlike LED Streifen, 24V, 5m, 2700K, Warmweiß, 8170lm, CRI95 pic2 33730
LumiFlex700 PRO Sunlike LED Streifen, 24V, 5m, 3000K, Warmweiß, 8490lm, CRI95 56103

LumiFlex700 PRO Sunlike LED strips, 24V, 5m

€209,24 - €209,24
€209,24
€209,24 - €209,24
€209,24
in stock
Energieeffizienzklasse F

Flexibility and brilliance over a length of 5 m The flexible LED strip LumiFlex700 Pro Sunlike from LUMITRONIX® was only developed for the high...

View full details
€209,24 - €209,24
€209,24
€209,24 - €209,24
€209,24
Dimmer für LEDs und LED Module (PWM) mit Drehregler pic2
Dimmer für LEDs und LED Module (PWM) mit Drehregler 95019

Dimmer for LEDs and LED modules (PWM) with rotary control

€12,52 - €12,52
€12,52
€12,52 - €12,52
€12,52
in stock

Adjustable dimmer for almost all LED circuits with ultra-bright LEDs, LED modules, LED strips, high-power LEDs (e.g. Nichia, Seoul, etc.). The modu...

View full details
€12,52 - €12,52
€12,52
€12,52 - €12,52
€12,52
LumiFlex700 PRO R2R LED Streifen, Tunable White, 5280lm, CRI95, 24V, 5m pic2
LumiFlex700 PRO R2R LED Streifen, Tunable White, 5280lm, CRI95, 24V, 5m, Tunable White, 5280lm, CRI95 39240

LumiFlex700 PRO R2R LED Strip, Tunable White, 5280lm, CRI95, 24V, 5m

€167,98 - €167,98
€167,98
€167,98 - €167,98
€167,98
in stock
Energieeffizienzklasse E

Flexibility and efficiency made in Germany The new LumiFlex700 TW Pro LED strip has been manufactured in a reel-to-reel process on our state-of...

View full details
€167,98 - €167,98
€167,98
€167,98 - €167,98
€167,98
MultiBar44 LED-Streifen, 44 LEDs, 50cm, 24V, Warmweiß, 850lm pic2 50860
MultiBar44 LED-Streifen, 44 LEDs, 50cm, 24V, Neutralweiß, 890lm 50859

MultiBar44 LED strip, 44 LEDs, 50cm, 24V

€19,24 - €19,24
€19,24
€19,24 - €19,24
€19,24
in stock
Energieeffizienzklasse D

First-class lighting technology with the LUMITRONIX MultiBar44 LED strip The LUMITRONIX MultiBar44 LED strips combine innovative technology, ve...

View full details
€19,24 - €19,24
€19,24
€19,24 - €19,24
€19,24
PowerBar V3 LED-Modul Aluminium 12x Osram Oslon SSL LEDs, 3000K, Warmweiß, CRI 90 pic2 31612
PowerBar V3 LED-Modul Aluminium 12x Osram Oslon SSL LEDs, Horticulture-Version 32177

PowerBar V3 LED module aluminum 12x Osram Oslon SSL LEDs

€29,33 - €29,33
€29,33
€29,33 - €29,33
€29,33
in stock
Energieeffizienzklasse E

PowerBar V3 LED module aluminum with Osram Oslon SSL LEDs - high-performance light for plants For professional and efficient use in horticulture, ...

View full details
€29,33 - €29,33
€29,33
€29,33 - €29,33
€29,33
SmartArray Q1 LED-Punktlichtquelle, quadratisch warmweiß 2700K 24V pic2
SmartArray Q1 LED-Punktlichtquelle, quadratisch warmweiß 2700K 24V, SmartArray Q1 LED-Modul quadratisch warmweiß 2700K 24V 32019

SmartArray Q1 LED point light source, square warm white 2700K 24V

€2,44 - €2,44
€2,44
€2,44 - €2,44
€2,44
in stock
Energieeffizienzklasse E

Despite its small size, the square SmartArray Q1 LED module is a real powerhouse. Equipped with a Nichia LED of the 481 series with a CRI value of...

View full details
€2,44 - €2,44
€2,44
€2,44 - €2,44
€2,44
PowerController V2 Steuergerät Casambi Classic 32157

PowerController V2 control unit Casambi Classic

€83,95 - €83,95
€83,95
€83,95 - €83,95
€83,95
in stock

Application examples with the PowerController V2 Casambi and other control units from our company can be found on our topic page on individual ligh...

View full details
€83,95 - €83,95
€83,95
€83,95 - €83,95
€83,95

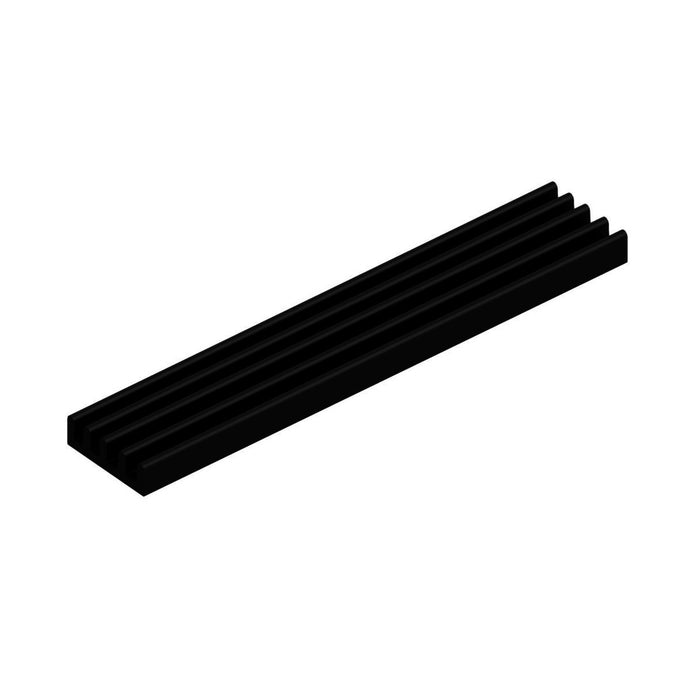

Heat sinks for LED modules up to 4W by LUMITRONIX - Perfect for your LED applications

Perfect for cooling LED modules, the LUMITRONIX heat sink consistently maintains its quality and functionality even at high load values. With a maximum power of 4W, this heat sink is perfectly suited for cooling linear SmartArray LED modules and square modules. Benefit from optimised thermal management technology, made in Germany
Efficient thermal management partner for your LED projects

When it comes to reliable cooling of LED modules, the LUMITRONIX heat sink sets the bar high. Designed to deliver optimum performance even under demanding load conditions, it is your ideal partner for all projects that require effective thermal management. Its black anodised surface helps optimise heat dissipation and cooling.

The features of the LUMITRONIX heat sink

For project-specific requirements, the LUMITRONIX heat sink offers specific features and highlights. Among the most important are:

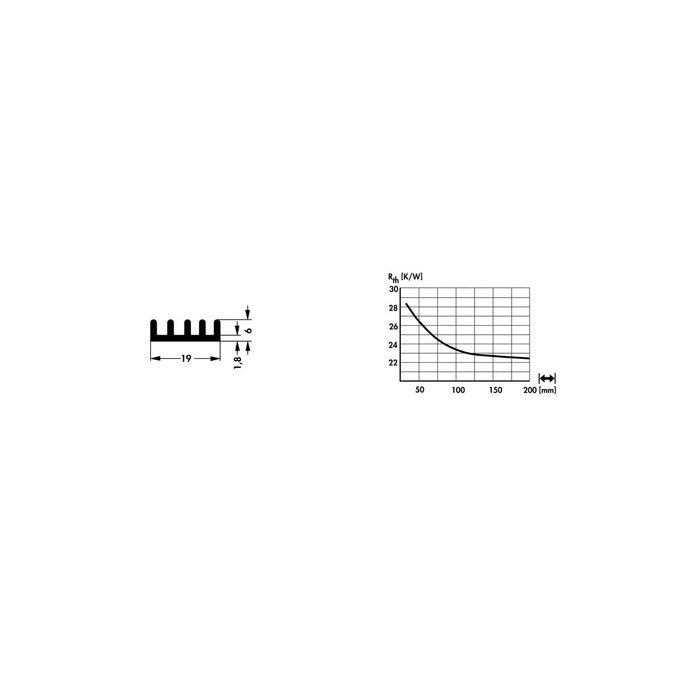

  • Thermal resistance: 28.3 - 22.3 K/W
  • Length: 100 mm
  • Height: 6 mm
  • Width: 19 mm
  • Base thickness: 1.8 mm
  • Surface: black anodised
  • Material: aluminium
Thermally conductive connection for effective thermal protection

To prevent overheating of the LED, we recommend a thermal connection from the LED module to the metallic luminaire housing. This dissipates excess heat to the outside and effectively prevents heat build-up in the luminaire housing. We point out that high-power LED modules should always be connected in series.

Many years of experience from LUMITRONIX

As a specialist in LED technology, LUMITRONIX offers excellent quality products with over 20 years of experience in LED lighting solutions. Our products have been manufactured with market-leading machine technology and are characterised by their durability and reliability. Whether you are a small business or a passionate tinkerer, we will accompany you with our LED products in your diverse projects.

FAQ about the LUMITRONIX heat sink
  1. What is the maximum thermal resistance of the heat sink?
    The maximum thermal resistance is 28.3 K/W, the minimum is 22.3 K/W.

  2. What kind of modules can the heat sink cool?
    The heat sink is suitable for both linear SmartArray LED modules and square modules.

  3. How do I prevent the LED module from overheating?
    A thermal connection between the LED module and the metallic luminaire housing helps to dissipate excess heat and prevent overheating.
Technical Details
SKU
40016
Brand
Added
12.04.2023
Manufacturer code
SK 631 100 SA
GTIN
4062986003914
Size (L x W x H)
10 cm x 1.9 cm x 0.6 cm
Weight
0.018 kg
