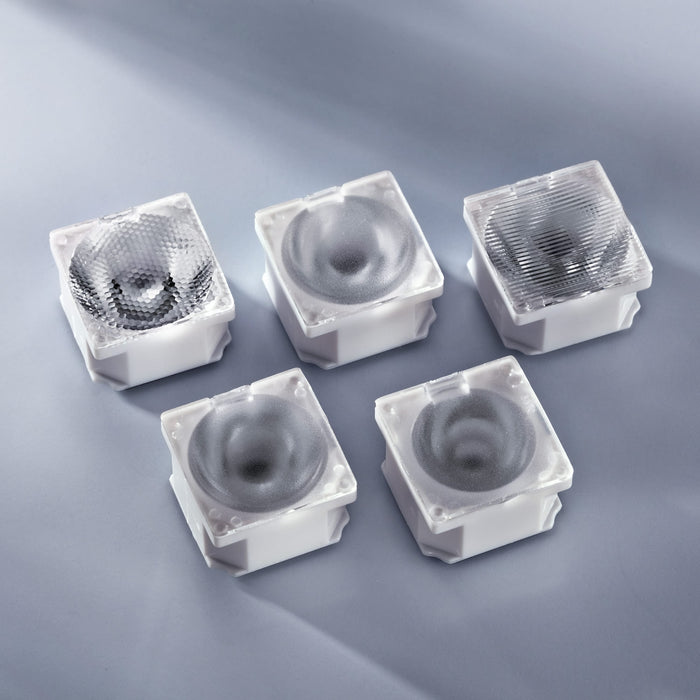

LEDiL lens 21.6x21.6mm for Nichia N83 & N183

by LEDiL

Designed & optimised for the N83 and N183 series by Nichia

  • Integrated holder
  • High UV and temperature resistance
$3.00 - $3.00
$3.00
$3.00 - $3.00
$3.00
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Shipping and price information

Orders placed before 3 p.m. will be shipped the same day on weekdays if the items are in stock. Goods that are not available will be shipped immediately upon receipt of the goods.

Shipping costs:

  • 5,70€ within Germany
  • 13,90€ to EU, Switzerland, Liechtenstein
  • 39,90€ rest of the world


Prices include VAT (EU only) and plus shipping . Comparative prices and discounts refer to the manufacturer's recommended retail price.

Payable with PayPal, ApplePay, AmazonPay, Mastercard, Visa, SOFORT

The LEDiL company is the expert for the development and production of LED optics. The versatile standard range of products comprises more than 1,000 lenses, reflectors and their combinations. This innovative manufacturer provides the appropriate optics for every lighting application.

Select your optic in due consideration of its radiation parameters and compatibility with LEDs.

Features

  • Designed & optimised for the N83 and N183 series by Nichia
  • Fast attachment to PCBs thanks to self-adhesive backside
  • Integrated holder
  • High UV and temperature resistance
  • Dimensions (DxH): 21,6+21,6x13,5mm

Viewing angle

  • 60231: Real spot, Viewing angle 9°
  • 60232: Smooth spot, Viewing angle 14°
  • 60234: Medium, Viewing angle 31°
  • 60235: Oval, Viewing angle 46+17°
  • 60237: Wide, Viewing angle 36°
  • 60238: Very Wide, Viewing angle 61°

Suited for the following LEDs, among others

  • Nichia N83 and N183 series

Please note that these lenses are not compatible with our PcBs.

Note: Depending on the LED used in combination with the lens, different beam angles may occur. The exact value can be found in the data sheet below.

We are official LEDiL distributor.

Technical Details
SKU
60231
Brand
Manufacturer code
FA10336_NIS83-MX-RS
Size (L x W x H)
2.16 cm x 2.16 cm x 2.16 cm
Weight
0.005 kg
