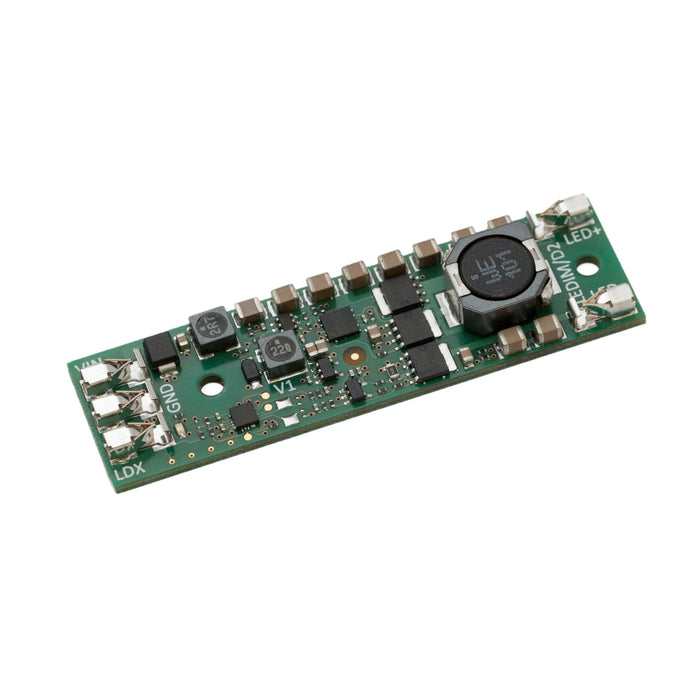

LEDIM/D2, PWM+PotDim-Treiber, flickerfrei, 1000mA 37394

LEDIM/D2, PWM+PotDim driver, flicker free

by LEDIM

Dimmer control unit for top lighting quality

  • Constant current driver with 1000mA
  • Flicker-free dimming via potentiometer
  • Ultra-compact design: 70x20x8mm
  • Dim-To-Dark feature

Analogue dimmer for high-intensity LEDs

  • High efficiency 1500mA constant current driver
  • Dimmable down to 0% (Dim-To-Dark)
  • Compatible with 48V DC power supply
  • Space saving dimensions of 20mm width
Sold out
$38.00 - $38.00
$38.00
$38.00 - $38.00
$38.00
Availability:
Sold out
Availability:
Sold out
Shipping and price information

13,90€ to UK and within the EU.
All countries/shipping rates.

Taxes and duties may apply outside the EU.

Prices incl. VAT and plus shipping. Comparison prices and discounts refer to the manufacturer's recommended retail price.

Payable with PayPal, ApplePay, AmazonPay, Mastercard, Visa, SOFORT

Accessories - Editorially selected

LEDIM/D2 PWM+PotDim driver - compact, efficient and totally flicker-free

The LEDIM/D2 driver sets new standards in terms of efficiency, flexibility and compactness. With its fully analogue dimming, it ensures 100% flicker-free light quality. Developed and produced in Germany, it is a testament to the highest quality
LEDIM/D2 driver - perfection in light

During the development of the LEDIM/D2 driver, special emphasis was placed on dimming. Analogue dimming, for example, enables completely flicker-free light that can be optimally adjusted to individual needs. Dimming can be controlled as required either via a potentiometer or via a PWM control signal. The ultra-compact dimensions of the driver as well as the tool-free cabling concept enable uncomplicated installation processes and also very space-saving solutions.

The special features of the LEDIM/D2 driver
  • Efficiency: Highly efficient, single-channel constant-current LED driver for optimum luminous efficacy
  • Flexibility: Optional control via potentiometer or PWM control signal
  • Quality: Made in Germany - for highest quality and long-lasting products
  • Compactness: Minimal dimensions of only 70 x 20 x 8 mm
  • Flicker-free: 100% flicker-free light quality thanks to fully analogue dimming
LEDIM - High-end lighting solutions from Berlin

The manufacturer LEDIM is based in beautiful Berlin. The start-up consists of experienced partners from development as well as from the luminaire, LED and retail industries. Their claim is not only to supply a component, but always to offer complete solutions.

FAQ about the PWM+PotDim driver from LEDIM
  1. How big is the driver?

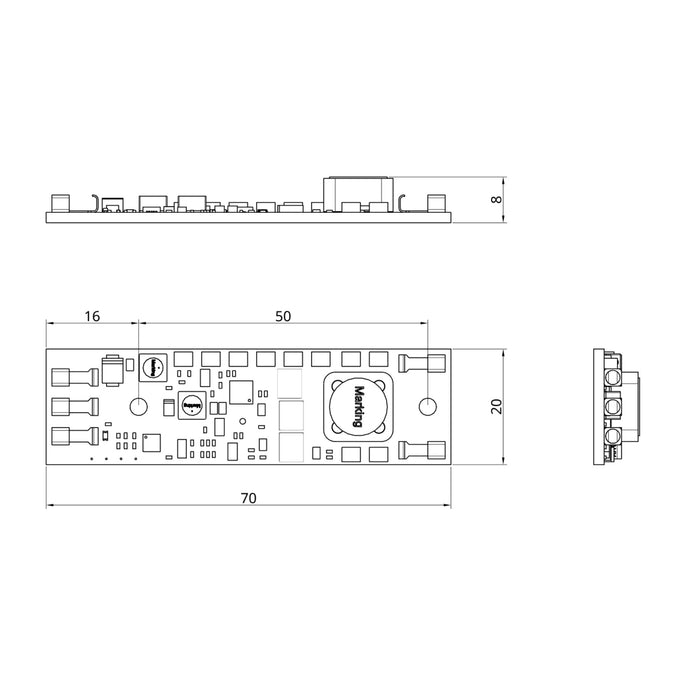

    The dimensions of the driver are 70 x 20 x 8 mm.

  2. What does 'dim-to-zero' mean?
    This means that the driver can dim down to zero.

  3. How many LEDs/COBs/Engines can the driver supply?
    That depends on the corresponding forward voltages. The driver can supply several LEDs/COBs/Engines connected in series.

At LUMITRONIX, with over 20 years of experience, we offer a wide range of expertise in the field of LED technology. As a distributor of LEDIM products, we place great emphasis on the quality and efficiency of our products. With market-leading machine technology for SMT assembly and innovative reel-to-reel (R2R) flex production lines, we ensure long-lasting product sustainability. We also offer our services to business customers. Visit our business customer page for more information.

Technical Details
SKU
37394
Brand
Added
31.03.2023
Manufacturer code
LD2-G1-DP-C1000
Electric Current (mA)
1000 (mA)
GTIN
4062986002030
Size (L x W x H)
5 cm x 1.6 cm x 0.6 cm
Weight
0.035 kg
