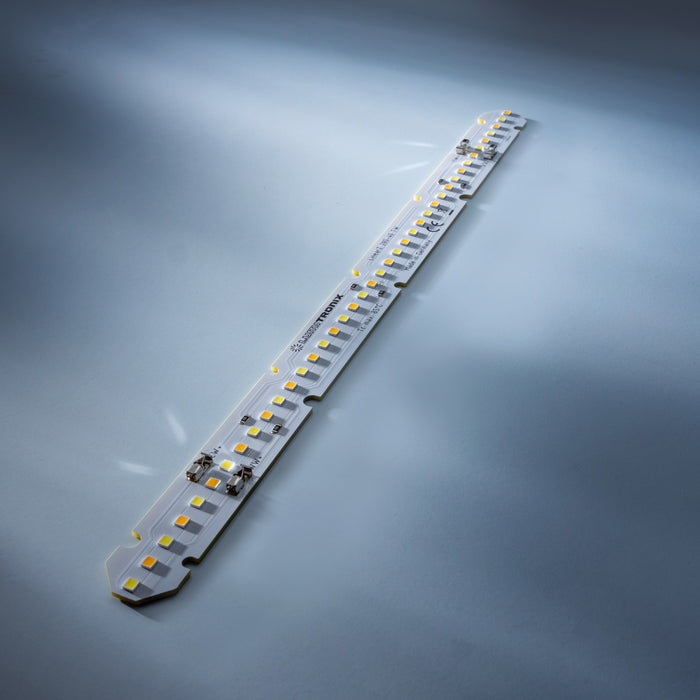

LinearZ 280-40 LED-Modul 2700K-5000K Tunable White, CRI>90 TriGain 38560

LinearZ 280-40 LED Module 2700K-5000K Tunable White, CRI>90 TriGain

LUMITRONIX

Zhaga-compatible Tunable White LED module with TriGain phosphor technology

  • 40 Nichia H6 series LEDs with TriGain phosphor technology
  • Zhaga-compatible design
  • Solderless connection
  • Highest energy efficiency class according to energy consumption labelling (EU) 2019/2015
Sold out
€10,84 - €10,84
€10,84
€10,84 - €10,84
€10,84
Product data sheet
Availability:
Sold out
Shipping and price information

13,90€ to UK and within the EU.
All countries/shipping rates.

Taxes and duties may apply outside the EU.

Prices incl. VAT and plus shipping. Comparison prices and discounts refer to the manufacturer's recommended retail price.

Payable with PayPal, ApplePay, AmazonPay, Mastercard, Visa, SOFORT

Accessories - Editorially selected

Discover more highlights from LUMITRONIX...

  • LumiFlex700 ECO R2R LED Streifen, 24V, 5m, 2700K, Warmweiß, 3600lm, CRI95 pic2 38671
    LumiFlex700 ECO R2R LED Streifen, 24V, 5m, 2700K, Warmweiß, 4700lm, CRI80 38667

    LumiFlex700 ECO R2R LED strip, 24V, 5m

    €33,53 - €41,93
    €33,53 - €41,93
    €33,53 - €41,93
    €33,53
    in stock

    Flexibility and efficiency Made in Germany - The LED strip for everyone The new LumiFlex700 Eco LED strip has been manufactured in a reel-to-reel...

    View full details
    €33,53 - €41,93
    €33,53 - €41,93
    €33,53 - €41,93
    €33,53
  • LumiFlex COB LED Streifen, 24V, 5m, 4000K, Neutralweiß, 4500lm, CRI90 pic2 39850
    LumiFlex COB LED Streifen, 24V, 5m, 3000K, Warmweiß, 4200lm, CRI90 39849
    Save 22% Save %

    LumiFlex COB LED strip, 24V, 5m

    €75,55
    €75,55 - €75,55
    €75,55
    €58,74
    €58,74 - €58,74
    €58,74
    in stock

    The LumiFlex Eco COB strip combines the flexibility of an LED strip with the high efficiency and light output of COBs. The LED strip offers a lumin...

    View full details
    €75,55
    €75,55 - €75,55
    €75,55
    €58,74
    €58,74 - €58,74
    €58,74
    Save 22% Save %
  • LED-Schraube Pro, im Chromgehäuse, wassergeschützt, IP67, 12V, kaltweiß pic2 25001
    LED-Schraube Pro, im Chromgehäuse, wassergeschützt, IP67, 12V, rot 25602

    LED screw Pro, in chrome housing, waterproof, IP67

    €3,32 - €3,32
    €3,32
    €3,32 - €3,32
    €3,32
    in stock

    The expert choice: LUMITRONIX LED screw Pro, in a chrome housing, water-protected, IP67 The LUMITRONIX LED screw Pro sets new standards in term...

    View full details
    €3,32 - €3,32
    €3,32
    €3,32 - €3,32
    €3,32
  • LumiFlex350 ECO R2R LED Streifen, 24V, 5m, 4000K, Neutralweiß, 3400lm pic2 36349
    LumiFlex350 ECO R2R LED Streifen, 24V, 5m, 2700K, Warmweiß, 3045lm 36348

    LumiFlex350 ECO R2R LED strip, 24V, 5m

    €23,10 - €23,10
    €23,10
    €23,10 - €23,10
    €23,10
    in stock

    Flexibility and efficiency Made in Germany - The LED strip for everyone The new LumiFlex350 Eco LED strip has been manufactured in a reel-to-ree...

    View full details
    €23,10 - €23,10
    €23,10
    €23,10 - €23,10
    €23,10
  • BackMatrix49 Performer LED-Modul, 49 LEDs, 28x28cm, 24V, 5000K neutralweiß, 1300lm pic2 36744
    BackMatrix49 Performer LED-Modul, 49 LEDs, 28x28cm, 24V, 2700K warmweiß, 1160lm 36742

    BackMatrix49 Performer LED module, 49 LEDs, 28x28cm, 24V

    €20,92 - €29,33
    €20,92 - €29,33
    €20,92 - €29,33
    €20,92
    in stock

    The high-performance BackMatrix49 LED module from LUMITRONIX - optimized for advertising and illuminated ceilings The BackMatrix49 Performer LED...

    View full details
    €20,92 - €29,33
    €20,92 - €29,33
    €20,92 - €29,33
    €20,92
  • MultiBar24 LED-Streifen, 24 LEDs, 50cm, 24V, Warmweiß, 335lm pic2 50857
    MultiBar24 LED-Streifen, 24 LEDs, 50cm, 24V, Neutralweiß, 350lm 50856

    MultiBar24 LED strip, 24 LEDs, 50cm, 24V

    €8,32 - €8,32
    €8,32
    €8,32 - €8,32
    €8,32
    in stock

    MultiBar24 LED strips from LUMITRONIX: versatile, efficient and guaranteed high performance! LUMITRONIX presents the latest edition of its well-...

    View full details
    €8,32 - €8,32
    €8,32
    €8,32 - €8,32
    €8,32
  • LumiFlex700 PRO R2R LED Streifen, 24V, 5m, 2700K, Warmweiß, 9050lm, CRI95 pic2 39227
    LumiFlex700 PRO R2R LED Streifen, 24V, 5m, 2700K, Warmweiß, 13900lm, CRI80 39223

    LumiFlex700 PRO R2R LED strip, 24V, 5m

    €125,97 - €142,77
    €125,97 - €142,77
    €125,97 - €142,77
    €125,97
    in stock

    Flexibility and efficiency made in Germany The new LumiFlex700 Pro LED strip has been manufactured in a reel-to-reel process on our state-of-th...

    View full details
    €125,97 - €142,77
    €125,97 - €142,77
    €125,97 - €142,77
    €125,97
  • MultiBar44 LED-Streifen, 44 LEDs, 50cm, 24V, Warmweiß, 850lm pic2 50860
    MultiBar44 LED-Streifen, 44 LEDs, 50cm, 24V, Neutralweiß, 890lm 50859

    MultiBar44 LED strip, 44 LEDs, 50cm, 24V

    €19,24 - €19,24
    €19,24
    €19,24 - €19,24
    €19,24
    in stock

    First-class lighting technology with the LUMITRONIX MultiBar44 LED strip The LUMITRONIX MultiBar44 LED strips combine innovative technology, ve...

    View full details
    €19,24 - €19,24
    €19,24
    €19,24 - €19,24
    €19,24
  • LumiFlex700 PRO Sunlike LED Streifen, 24V, 5m, 2700K, Warmweiß, 8170lm, CRI95 pic2 33730
    LumiFlex700 PRO Sunlike LED Streifen, 24V, 5m, 3000K, Warmweiß, 8490lm, CRI95 56103

    LumiFlex700 PRO Sunlike LED strips, 24V, 5m

    €209,24 - €209,24
    €209,24
    €209,24 - €209,24
    €209,24
    in stock

    Flexibility and brilliance over a length of 5 m The flexible LED strip LumiFlex700 Pro Sunlike from LUMITRONIX® was only developed for the high...

    View full details
    €209,24 - €209,24
    €209,24
    €209,24 - €209,24
    €209,24
  • MaxLine70 LED-Streifen, 70 LEDs, 28cm, Warmweiß, 2080lm, 700mA pic2 53317
    MaxLine70 LED-Streifen, 70 LEDs, 28cm, Warmweiß, 2080lm, 24V 53313

    MaxLine70 LED strip, 70 LEDs, 28cm

    €25,13 - €25,13
    €25,13
    €25,13 - €25,13
    €25,13
    in stock

    Discover the LUMITRONIX MaxLine70 LED strip for unique lighting solutions An innovative approach to LED lighting solutions - our MaxLine70 LED str...

    View full details
    €25,13 - €25,13
    €25,13
    €25,13 - €25,13
    €25,13
  • ConextMatrix LED-Modul, 4 LEDs, 4x4cm, 2700K, 24V, CRI90, Randmodul pic2 31848
    ConextMatrix LED-Modul, 4 LEDs, 4x4cm, 2700K, 24V, CRI90, Eckmodul 31847

    ConextMatrix LED module, 4 LEDs, 4x4cm, 2700K, 24V, CRI90

    €2,44 - €2,44
    €2,44
    €2,44 - €2,44
    €2,44
    in stock

    You will receive a corner module with 4 warm white LEDs measuring 4 x 4 cm and a voltage of 24 V. With the patented Conext connection system, L...

    View full details
    €2,44 - €2,44
    €2,44
    €2,44 - €2,44
    €2,44
  • Dimmer für LEDs und LED Module (PWM) mit Drehregler pic2
    Dimmer für LEDs und LED Module (PWM) mit Drehregler 95019

    Dimmer for LEDs and LED modules (PWM) with rotary control

    €12,52 - €12,52
    €12,52
    €12,52 - €12,52
    €12,52
    in stock

    Adjustable dimmer for almost all LED circuits with ultra-bright LEDs, LED modules, LED strips, high-power LEDs (e.g. Nichia, Seoul, etc.). The modu...

    View full details
    €12,52 - €12,52
    €12,52
    €12,52 - €12,52
    €12,52
  • PowerBar V3 LED-Modul, Aluminium, 12x Nichia 119 UV-LEDs, 405nm pic2 31618
    PowerBar V3 LED-Modul, Aluminium, 12x Nichia 119 UV-LEDs, 385nm 31617

    PowerBar V3 LED module, aluminum, 12x Nichia 119 UV LEDs

    €58,74 - €209,24
    €58,74 - €209,24
    €58,74 - €209,24
    €58,74
    in stock

    You will receive a PowerBar V3 LED module equipped with 12 powerful and durable Nichia UV LEDs of the 119 series. The PowerBar V3 LED modules a...

    View full details
    €58,74 - €209,24
    €58,74 - €209,24
    €58,74 - €209,24
    €58,74
  • LumiFlex350 PRO R2R LED Streifen, 24V, 5m, 2700K, Warmweiß, 5450lm, CRI90 pic2 35079
    LumiFlex350 PRO R2R LED Streifen, 24V, 5m, 2700K, Warmweiß, 6500lm, CRI80 35077

    LumiFlex350 PRO R2R LED strip, 24V, 5m

    €83,95 - €88,15
    €83,95 - €88,15
    €83,95 - €88,15
    €83,95
    in stock

    The LumiFlex350 PRO R2R LED strip from LUMITRONIX: A masterpiece of flexibility and efficiency Discover our LumiFlex350 PRO R2R LED strip - a hig...

    View full details
    €83,95 - €88,15
    €83,95 - €88,15
    €83,95 - €88,15
    €83,95
  • PowerBar V3 LED-Modul Aluminium 12x Osram Oslon SSL LEDs, 3000K, Warmweiß, CRI 90 pic2 31612
    PowerBar V3 LED-Modul Aluminium 12x Osram Oslon SSL LEDs, Horticulture-Version 32177

    PowerBar V3 LED module aluminum 12x Osram Oslon SSL LEDs

    €29,33 - €29,33
    €29,33
    €29,33 - €29,33
    €29,33
    in stock

    PowerBar V3 LED module aluminum with Osram Oslon SSL LEDs - high-performance light for plants For professional and efficient use in horticulture, ...

    View full details
    €29,33 - €29,33
    €29,33
    €29,33 - €29,33
    €29,33

The LinearZ 280-40 LED module 2700K-5000K Tunable White, CRI>90 TriGain by LUMITRONIX

"Experience light" with the highly efficient LinearZ module by LUMITRONIX, manufactured in Germany. With a versatile range of applications and outstanding features such as the innovative TriGain phosphor technology, it meets even the most demanding lighting needs
Innovation and quality: the LinearZ LED module

The LinearZ 280-40 LED module represents the next generation of the LinearZ series. It prides itself on the Nichia H6 chipset and its remarkable TriGain phosphor technology, which provides outstanding efficiency and light quality. With a colour temperature of 2700 to 5000 K, it offers Tunable White, allowing you to create the ideal lighting mood for any situation.

Zhaga-compatible design: Easy installation and high compatibility

The Zhaga-compatible design of the LinearZ module makes it easy to install in many different luminaires. It does not require a heat sink and offers a solderless connection, making the installation process even less complicated.

Features of the LinearZ 280-40 LED module
  • Luminous flux: up to 953 lm
  • Colour temperature: 2700 to 5000 K
  • LEDs: 40 Nichia H6 LEDs
  • Technology: TriGain phosphor technology
  • Energy efficiency class: A according to (EU) 2019/2015
  • Compatibility: Zhaga standard (Book 7 L28W2)
  • Operation: Constant current operation
  • Installation: Solderless connection
  • Cooling: No heat sink necessary
  • Design: No visible light points, slim alignment for narrow spaces
  • Quality standard: 3-Step MacAdam binning
  • Dimensions: 279.5 x 20 x 4.57 mm
  • Manufacture: Made in Germany
  • Warranty: 3 years
Dedicated application area of the LED module
  • Commercial lighting: the modular design offers a wide range of applications.
  • Medical sector: ideal for lighting-intensive workplace requirements.
FAQ about the LinearZ 280-40 LED module
  1. How does the installation of this module work?
    Installation is straightforward and solder-free. Simply follow the instructions provided.
  2. Do I need to use a heat sink for this module?
    No, the module does not require a heat sink.
  3. Can I adjust the colour temperature of this module?
    Yes, the module offers a Tunable White with a colour temperature of 2700 to 5000 K.
LUMITRONIX - Your expert for innovative LED solutions

LUMITRONIX is a leading LED expert with more than 20 years of experience in the industry. We produce our products directly in Germany to ensure high quality. With our sustainable LED products, we make an important contribution to environmental protection and energy efficiency. Learn more about our attractive conditions and specialised bulb services for business customers.

Technical Details
SKU
38560
Brand
Added
03.11.2021
Light colour
Tunable White
Dimmable
Yes
Manufacturer code
38560
CRI (Ra)
90
Viewing Angle (°)
120 (°)
Power (W)
4.94 (W)
Voltage (V)
14.53 (V)
Electric Current (mA)
340 (mA)
GTIN
4062986002481
Energy efficiency class 2021
A
Energy label 38560 de Energieeffizienzlabel.svg
Size (L x W x H)
28 cm x 2 cm x 0.16 cm
Weight
0.02 kg
