Meanwell NLDD-HW constant current source

Integrated PWM function and remote ON/OFF controller

  • Input voltage 10-56V, max. 59V
  • Output: 18.2W, 350mA, 6-52V
  • Robust: short-circuit & temperature protection

Integrated PWM function and remote ON/OFF controller

  • Converts input voltage from 10-56V
  • Maximum output power of 26W
  • Integrated short-circuit and temperature protection

700mA constant current source with PWM

  • Input voltage up to 59 V
  • Output power of 36.4 W
  • With integrated PWM function
  • Features short-circuit protection

For LED lighting, PWM & ON/OFF remote control

  • Operating voltage 10 - 56 V
  • Max. output power 54.6 W
  • Built-in PWM function
  • Short circuit & overheating protection

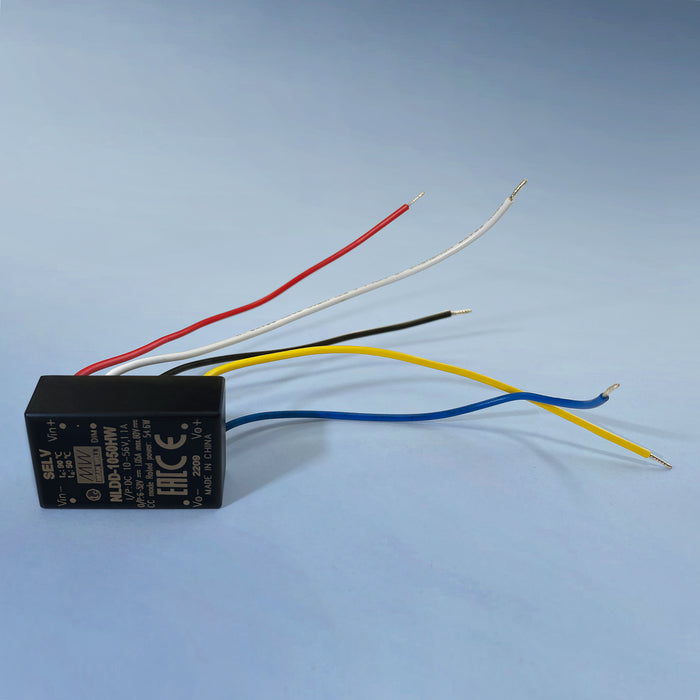

With 1200mA and integrated PWM function

  • Powerful 1200mA constant current source
  • Integrated protection mechanisms
  • Built-in PWM function
  • High-quality processing of LEDs.de

High-efficiency constant current source with PWM

  • Input voltage up to 56V
  • Output power: 64.4W
  • Equipped with PWM function
  • Stable output current: 1400mA
Original price $6.00 - Original price $6.00
Original price
$6.00
$6.00 - $6.00
Current price $6.00
Availability:
Only 2 left!
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
Only 2 left!
Shipping and price information

13,90€ to UK and within the EU.
All countries/shipping rates.

Taxes and duties may apply outside the EU.

Prices incl. VAT and plus shipping. Comparison prices and discounts refer to the manufacturer's recommended retail price.

Payable with PayPal, ApplePay, AmazonPay, Mastercard, Visa, SOFORT

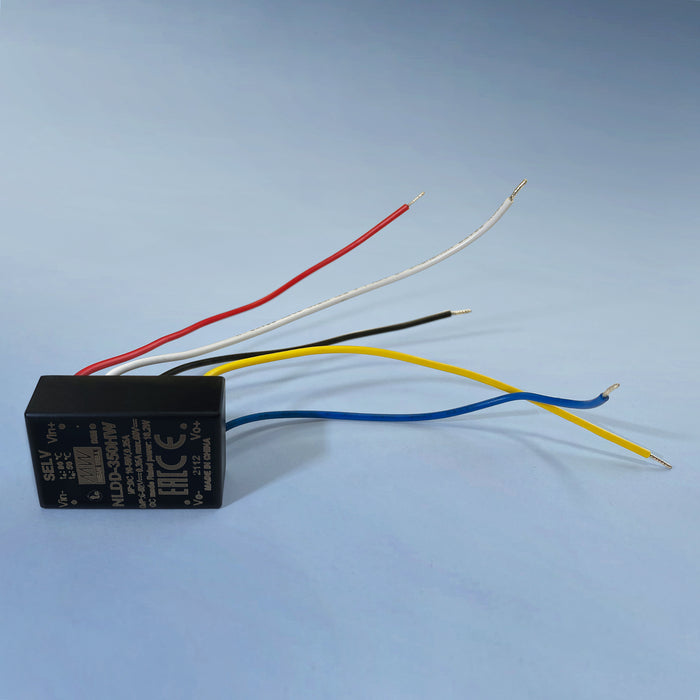

Meanwell NLDD-HW Constant Current Source - Quality and Reliability in One

This Meanwell NLDD-HW constant current source is a reliable and high quality current source for your LED applications. With an input voltage of 10-56 V, an output voltage of 6-52 V, an output current of 350mA and an output power of 18.2 W, it is very efficient and flexible to use. Its PWM function allows the brightness to be adjusted seamlessly
Meanwell - A name that inspires confidence

Since 1982, the name Meanwell has stood for quality and reliability in electrical engineering. Started as a small company in Taiwan, Meanwell is now one of the world's leading manufacturers of standard switching power supplies. With over 4500 different products - including switching power supplies, converters and chargers - the manufacturer offers solutions for almost every requirement.

The NLDD-HW series - efficiency and flexibility

The NLDD-HW series from Meanwell stands for high efficiency and flexible application possibilities. Since it accepts an input voltage of 10-56 V (max. 59 V) and delivers an output voltage of 6-52 V, a wide range of LED applications can be realised. In addition, the PWM function enables precise control of the brightness.

Features of the Meanwell constant current source NLDD-350HW:
  • Input voltage: 10 - 56 VDC (59 VDC max)
  • Output voltage: 6 - 52 VDC
  • Outputcurrent: 350 mA
  • Output power: 18.2 W
  • Efficiency: up to 96
  • Conformity: BS EN/EN61347 and BS EN/EN55015
  • additional functions: PWM function and ON/OFF remote control
  • Protection mechanisms: short circuit and overtemperature
  • Cooling: by free air convection
  • Packaging: full enclosure and compact size
  • Application: Ideal for LED lighting applications
This is how Meanwell fascinates

With the words "Mean well" - "having good intentions" - the name of the company was chosen by founder Jerry Lin, which aptly describes the company philosophy. With high quality standards and fair prices, Meanwell wants to contribute to making the world of electrical engineering a little better.

FAQ for the Meanwell NLDD-HW constant current source:
  1. How is the Meanwell NLDD-HW constant current source connected?
    The Meanwell NLDD-HW constant current source has pre-assembled connection cables that enable simple and safe connection.

  2. Is the Meanwell NLDD-HW constant current source also suitable for applications other than LED lighting?
    The Meanwell NLDD-HW constant current source is specifically designed for LED lighting applications. It is advisable to use it only for its intended purpose.

  3. How much can the brightness be adjusted with the PWM function?
    With the PWM function of the Meanwell NLDD-HW constant current source, the brightness can be controlled almost continuously, so that an exact adjustment to the respective requirements is possible.
Technical Details
SKU
40407
Brand
Added
26.01.2023
Manufacturer code
NLDD-350HW
Power (W)
18.2 (W)
Electric Current (mA)
350 (mA)
GTIN
4062986003754
Size (L x W x H)
2 cm x 3.2 cm x 1.2 cm
Weight
0.05 kg
