MechaTronix Kühlkörper MODULED NANO 7050-B 34098

MechaTronix heatsink MODULED NANO 7050-B

by MechaTronix

Modular LED heat sink for Zhaga Book 3

Modular LED heat sink
For 2200 - 4300 lumens
With M3 and Ø6mm holes
Made of AL6063-T5 aluminium alloy

$10.00 - $10.00

$10.00

$10.00 - $10.00

$10.00

Availability:

in stock, ready to be shipped

Shipping and price information

13,90€ to UK and within the EU.
All countries/shipping rates.

Taxes and duties may apply outside the EU.

Prices incl. VAT and plus shipping. Comparison prices and discounts refer to the manufacturer's recommended retail price.

Payable with PayPal, ApplePay, AmazonPay, Mastercard, Visa, SOFORT

Accessories - Editorially selected

Fischer Elektronik Wärmeleitkleber, WLK DK 4, 2x2ml 31986

Fischer Elektronik thermally conductive adhesive

from

$20.00

View product

Arctic Silver 5 Wärmeleitpaste (3.5g) 60007

Arctic Silver 5 Thermal Compound (3.5g)

$9.00

View product

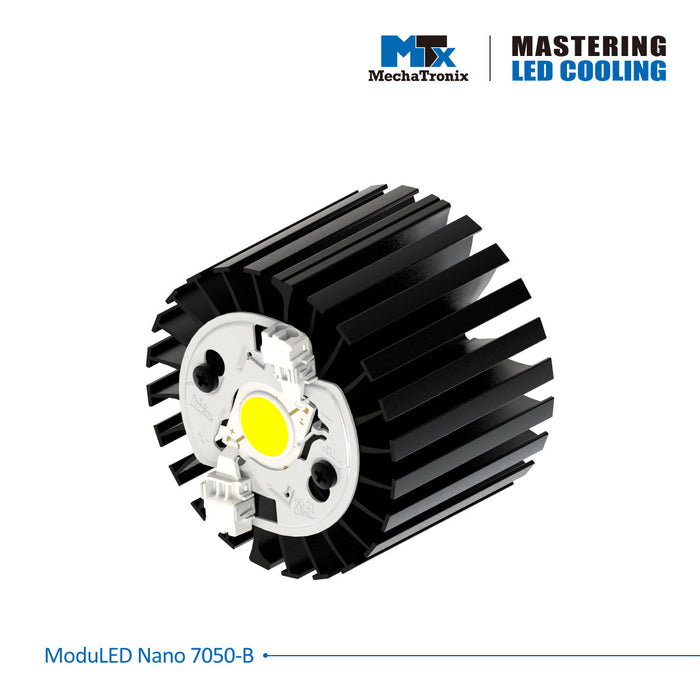

MechaTronix MODULED NANO 7050-B heat sink

Optimise your LED lighting solution with the high quality MechaTronix MODULED NANO 7050-B heat sink - designed specifically for improved heat distribution and increased longevity of your Zhaga Book 3 LED modules

Design meets functionality

The MechaTronix heat sink MODULED NANO 7050-B is characterised by its robust modular design. Made of a high-quality AL6063-T5 aluminium alloy, this heat sink offers the optimal solution for free convection. Whether for a spotlight or downlight design, this heat sink is versatile and perfectly suited for LED modules of the Zhaga Book 3, from 2200 - 4300 lumens.

Easy mounting and high efficiency

The installation of the LED modules is quite straightforward - it can be done either through the already existing holes (M3 and Ø6mm) or by using thermally conductive adhesive foil or thermally conductive adhesive. Their flexibility allows you to create an individual and efficient lighting solution.

Features of the MechaTronix heat sink

Dimensions: 70 x 50 mm
Weight: 185 g
Mounting holes: M3 and 6 mm
Application: For LED modules of the Zhaga Book 3
Thermal resistance: 2.1(°C/W)

FAQ about this LED heat sink

Does this heat sink provide passive or active cooling?
The MechaTronix heat sink MODULED NANO 7050-B offers passive cooling by free convection.

Is this heat sink suitable for all LED modules?
No, this heat sink is specially designed for the LED modules of the Zhaga Book 3.

How is the LED module mounted on the heat sink?
Mounting is very simple and can be done either through the existing holes or by using thermally conductive adhesive foil or thermally conductive adhesive.

As the operator of LEDs.de with 20 years of experience and specialised high-end production lines, we offer you high-quality LED solutions. In addition to individual LEDs, our extensive range also includes ready-made LED modules and products such as this MechaTronix heat sink.

This high-quality heat sink is developed and manufactured by MechaTronix, a renowned manufacturer in LED technology. By working with renowned technology partners such as MechaTronix, we are always able to offer you the best LED technology. Find out about our special conditions for corporate customers here.

Technical Details
SKU	34098
Brand	MechaTronix
Manufacturer code	MODULED NANO 7050-B
GTIN	4260127458054
Size (L x W x H)	7 cm x 7 cm x 5 cm
Weight	0.188 kg
Categories Nr. 33 in Accessories & more components Nr. 15 in Aluminium Profiles & Heatsinks
Data sheet MechaTronix Heat Sink MODULED NANO 7050-B (PDF)
