SmartArray LED-Modul, 24V, 3500K, 360lm

Powerful and efficient LED module

  • 24 V Konstantspannungs LED-Modul
  • Typische Effizienz von bis zu 100 lm/W
  • Typischer Lichtstrom von 360 lm
Original price €3,28 - Original price €3,28
Original price
€3,28
€3,28 - €3,28
Current price €3,28
Availability:
in stock, ready to be shipped
Versand und Preisinformation

Versandkostenfrei ab 89 €, sonst 5,70 € innerhalb Deutschlands

Mindermengenzuschlag bei unter 20 € Bestellwert: 2 € (werden direkt auf die Versandkosten aufgeschlagen)

Preise inkl. MwSt. und zzgl. Versand. Vergleichspreise und Rabatte beziehen sich auf die unverbindliche Preisempfehlung des Herstellers.

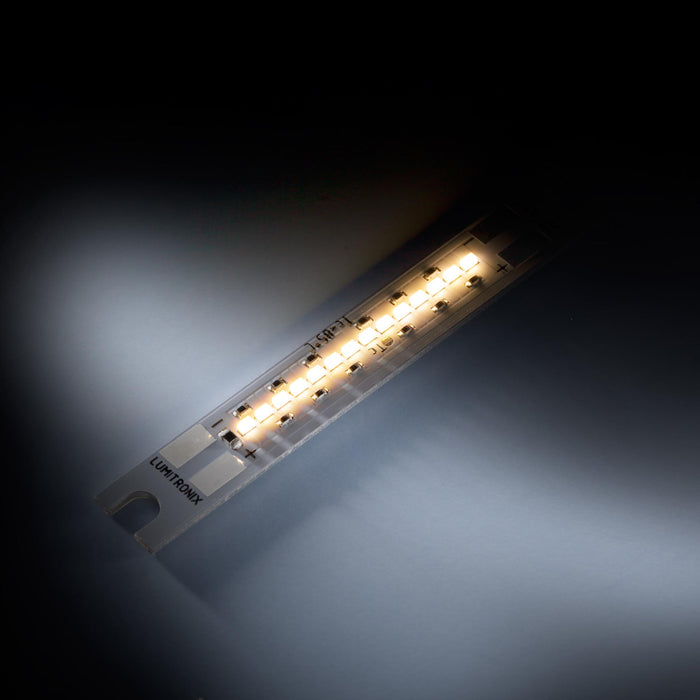

SmartArray 24V LED module – powerful and efficient

The SmartArray 24V LED module is part of our renowned product family, which is aimed specifically at lighting manufacturers. It sets new standards with excellent performance, high efficiency and remarkable lighting properties. Find out more about the benefits and features of this outstanding product.

Product features at a glance:
  • Color temperature: 2700K (warm white)
  • Voltage: 24V constant voltage
  • Efficiency: Typical efficiency of up to 100lm/W
  • Luminous flux: Typical luminous flux of up to 360lm
  • Color rendering: Natural color rendering with a CRI >80
  • Compact Size: Only 50x7x1.6mm
  • Easy to attach: recess for screw fixation or heat-conducting adhesive pad
  • Even light: Nichia Binning (3-Step MacAdam)
  • Long service life: 3 year guarantee
  • Versatile Replacement: Ideal for lighting manufacturers and industrial applications
Excellent connection technology

The SmartArray 24V LED module offers first-class connection technology that opens up new possibilities when selecting a power supply. With the flexibility of 24V you can choose the optimal power supply for your needs.

Easy construction

Thanks to the recess for screw fixation, installation is extremely easy. Alternatively, the module can be attached using the thermally conductive adhesive pad provided. The 14 Nichia LEDs deliver the brightness of a 25W module, but only consume 3.6W. This LED module is perfect for lighting manufacturers and industrial applications.

Manufacturer and quality

The SmartArray 24V LED module comes from the renowned manufacturer LUMITRONIX, which is known for high-quality LED products. As a distributor for market leaders like Nichia, we offer attractive conditions and first-class distribution services. Find out more about our business customer services on our business customer page .

Frequently Asked Questions (FAQ)
  1. Question: What color temperature does the SmartArray 24V LED module have?
  2. Answer: The module has a color temperature of 2700K (warm white).

  3. Question: How is the module attached?
  4. Answer: You can attach the module either by screw fixing or using the included thermally conductive adhesive pad.

  5. Question: What warranty does the SmartArray 24V LED module offer?
  6. Answer: The module comes with a 3-year long life warranty.

Discover the versatility and efficiency of the SmartArray 24V LED module and design your lighting projects with first-class LED technology.

Technical Details
SKU
53683.10
Brand
Energy efficiency class
A+
Light color
Warm white
Manufacturer code
53683.10
Efficiency (lm/W)
100 (lm/W)
Luminous flux (lm)
360 (lm)
Color temperature (K)
3500 (K)
CRI (Ra)
80
Power (W)
3.6 (W)
Voltage (V)
24.0 (V)
Electrical current (mA)
150 (mA)
GTIN
4062986004287
Size (L x W x H)
5 cm x 0.7 cm x 0.16 cm
Weight
0.002 kg
