SmartArray Q12 LED point light source

Equipped with innovative Tunable White technology!

  • Compact size 19x19mm
  • Equipped with 12 Nichia LEDs
  • CRI value over 80
  • Ideal for dimmable luminaires

12x Nichia E17A LED, 3 years warranty

  • Simple plug & play system
  • Special replacement for COB modules
  • Flexible thanks to different dimensions
  • 12x Nichia E17A LED integrated

12x Nichia E17A LED, 3 years warranty

  • Tool-free plug & play connection
  • Ideal for replacing COB modules
  • Available in various sizes
  • 4000K neutral white light colour
Original price $7.00 - Original price $7.00
Original price
$7.00 - $7.00
Current price $7.00
in stock, ready to be shipped
in stock, ready to be shipped
in stock, ready to be shipped
Shipping and price information

13,90€ to UK and within the EU.
All countries/shipping rates.

Taxes and duties may apply outside the EU.

Prices incl. VAT and plus shipping. Comparison prices and discounts refer to the manufacturer's recommended retail price.

Payable with PayPal, ApplePay, AmazonPay, Mastercard, Visa, SOFORT

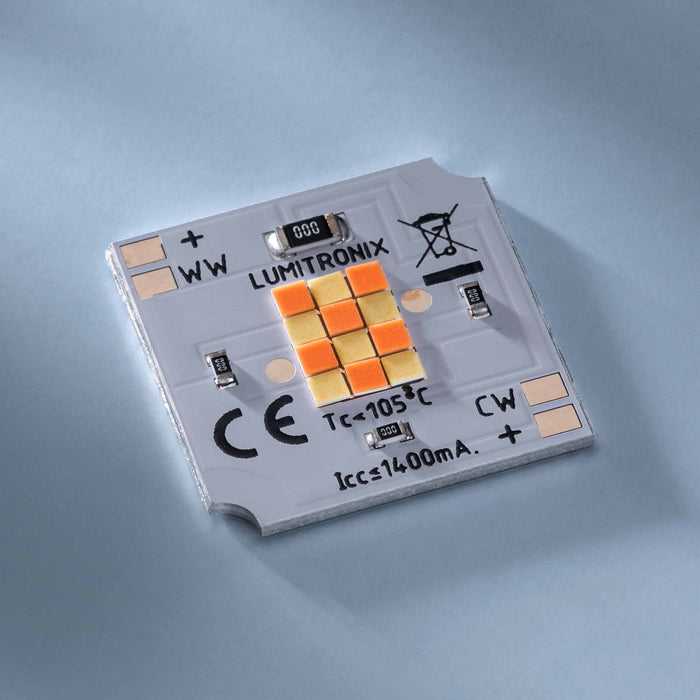

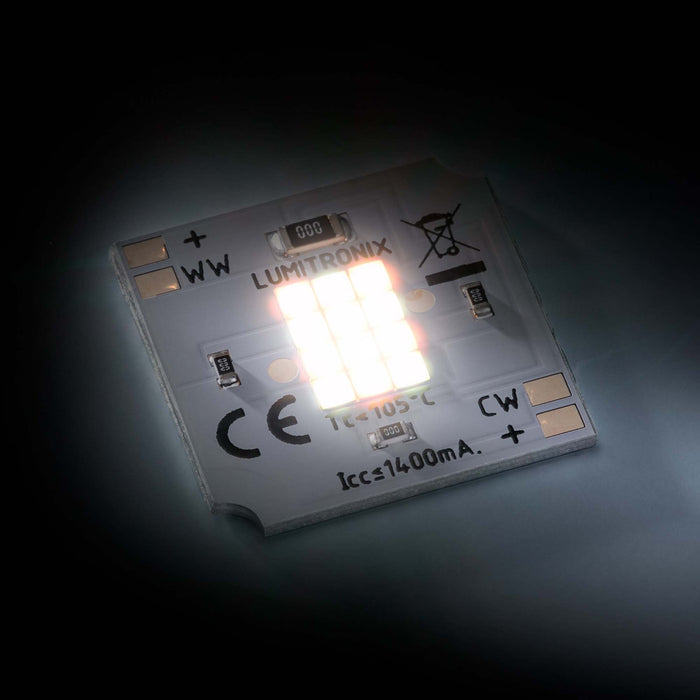

SmartArray Q12 LED point light source - High-quality light from LUMITRONIX

The SmartArray Q12 LED point light source from LUMITRONIX impresses with its extraordinary luminosity and innovative power. Equipped with Tunable White technology, it provides flexible and high-quality light - perfect for designer luminaires or industrial high-performance luminaires
Product information and advantages of the SmartArray Q12

Equipped with a total of 12 Nichia LEDs from the E17A series, the SmartArray Q12 delivers brilliant light quality. The LEDs installed have been selected according to high quality standards and have a CRI value of over 80, which not only enhances colour rendering but also general illumination. With the help of the innovative Tunable White technology, the colour temperature can be continuously adjusted from warm white to cool white, making the SmartArray Q12 ideal for offices, hospitals or schools.

  • Efficient: up to 134 lm/W
  • High output: luminous flux up to 2400 lm
  • Innovative technology: Equipped with Tunable White technology
  • Compact: Very small dimensions of 19x19x1.5mm
  • Easy to install: Quick and easy installation
  • High-quality lighting: Uniform white light thanks to Nichia binning (3-step MacAdam)
  • Safe: 3-year warranty
  • Locally produced: Manufactured by LUMITRONIX in Germany
Quality and innovation - the SmartArray product family by LUMITRONIX

The SmartArray product family from LUMITRONIX is characterised by its performance and innovative technologies. All SmartArray models have been specially developed for use in high-intensity luminaires and are ideal replacements for COB modules. They are flatter and more compact than their predecessors, allowing installation in almost any luminaire design. With our Tunable White and Dim2Warm technology, our SmartArray products offer particularly pleasant light spectra for living and working areas.


As a specialist in LED lighting solutions with over 20 years of experience, LUMITRONIX is known for high quality and innovation. All our LED modules in the SmartArray range are developed in-house and manufactured in Hechingen, Germany. Our offer regarding individual LED solutions distinguishes us so that the requirements of our business customers can be met in every respect.

FAQ about the SmartArray Q12 LED point light source

  1. Can I adjust the colour temperature of the SmartArray Q12?
    Yes, with Tunable White technology, the colour temperature can be continuously adjusted from 2000K (warm white) to 6500K (almost daylight).

  2. Can I dim the SmartArray Q12 module?
    Yes, the module can be dimmed. The colour temperature remains constant.

  3. What is the CRI value?
    The CRI value (Colour Rendering Index) is a measure of the quality of the colour rendering of a light source. The higher the CRI value, the more natural the colours are rendered.
Technical Details
Energy efficiency class
Light colour
Tunable White
Life cycle (h)
60000 h
Manufacturer code
Efficiency (lm/W)
134 (lm/W)
Luminous flux (lm)
805 (lm)
CRI (Ra)
Viewing Angle (°)
120 (°)
Power (W)
6.0 (W)
Voltage (V)
8.6 (V)
Electric Current (mA)
700 (mA)
Size (L x W x H)
1.9 cm x 1.9 cm x 0.15 cm
0.001 kg
