Stern Kühlkörper, geschwungen, 85mm pic2 60024

Stern heatsink, curved

by Fischer Elektronik

Minimum cooling for Luxeon I III K2 & Seoul P4

For high-power LEDs up to 9W
Optimal heat dissipation 2.28 K/W
Ideal for star boards
Dimensions: 70mm x 10mm

Minimum cooling for Luxeon I III K2 & Seoul P4

Effective heat dissipation for 9W LEDs
Variant: 85mm x10mm, 2.25 K/W
Ideal for Luxeon I, III, K2 & Seoul P4
Perfect fit for Star PCBs

$4.00 - $5.00

$5.00

$4.00 - $5.00

$5.00

Availability:

in stock, ready to be shipped

Availability:

in stock, ready to be shipped

Quantity

Shipping and price information

13,90€ to UK and within the EU.
All countries/shipping rates.

Taxes and duties may apply outside the EU.

Prices incl. VAT and plus shipping. Comparison prices and discounts refer to the manufacturer's recommended retail price.

Payable with PayPal, ApplePay, AmazonPay, Mastercard, Visa, SOFORT

Accessories - Editorially selected

Fischer Elektronik Wärmeleitkleber, WLK DK 4, 2x2ml 31986

Fischer Elektronik thermally conductive adhesive

from

$20.00

View product

Arctic Silver 5 Wärmeleitpaste (3.5g) 60007

Arctic Silver 5 Thermal Compound (3.5g)

$9.00

View product

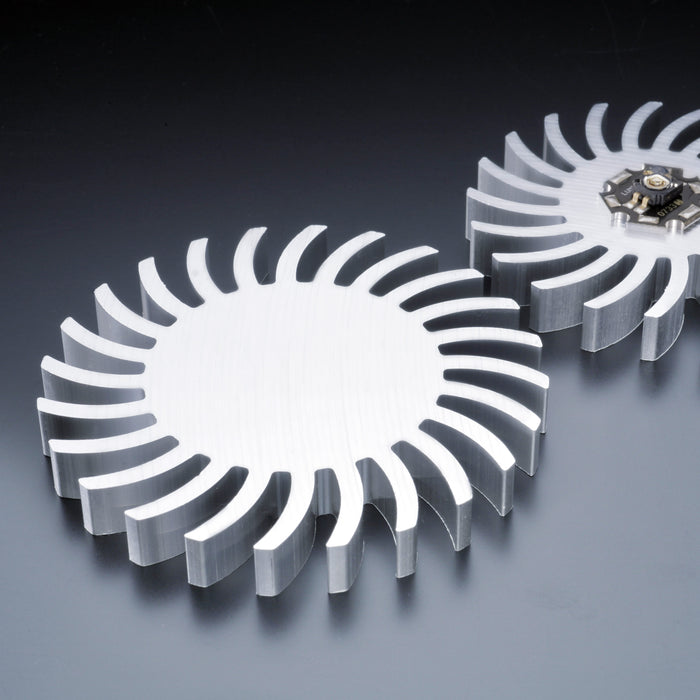

The star heat sink from Fischer Elektronik: Optimum performance in a small space

The curved star heat sink from Fischer Elektronik, is specially designed for use with high-power LEDs. With its excellent cooling performance, it is ideal for the efficient heat dissipation of LEDs with an operating current of up to 1000mA and a total output of up to 9Watts

Powerful and versatile

This heatsink is available in two sizes, allowing it to be flexibly adapted to the requirements of your specific application. Both models impress with strong thermal conductivity and low thermal resistance, which contribute to the high performance combined with compact dimensions.
Another highlight: the centre surfaces of the heat sinks are optimally designed for mounting Star or Triple LED boards

Heat sinks - technical specifications

With the different sizes and formats, the Stern heat sink offers the right solution for every requirement

Size: 70mm x10mm
Thermal resistance: 2.28 K/W
Thermal conductivity: 200W/mK
Centre area: 35mm (suitable for Star PCBs)

Size: 85mm x10mm
Thermal resistance: 2.25 K/W
Thermal conductivity: 200W/mK
Centre area: 50mm (suitable for Triple LED boards)

Fischer Elektronik - Innovation and Quality

Fischer Elektronik stands for excellent quality and innovative products in the field of electronics. Sophisticated technical know-how and a high level of vertical integration enable the manufacturer to develop products such as this Stern heat sink, which are characterised by high performance and reliability

FAQ about the Stern heat sink

Which LEDs can I use with the heat sink?
The heat sink is ideal for high-power LEDs whose operating current is 1000mA and total power does not exceed 9W.
How do I mount the LED on the heat sink?
The centre surfaces of the heat sink are ideal for mounting Star or Triple LED boards.
Is the heat sink suitable for all LED boards?
Yes, the heat sink is suitable for both Star and Triple LED boards.

Manufactured by Fischer Elektronik, this heat sink also meets the high quality standards of our customers.Theuse of LED technology also offers ecological advantages through a long service life and energy efficiency.For larger projects or special requirements, we recommend the services of LUMITRONIX.With over 20 years of experience, a wealth of expertise and state-of-the-art production lines, we are your competent partner for individual LED lighting solutions.

Technical Details
SKU	60024
Brand	Fischer Elektronik
Manufacturer code	SK 572-10-AL
Size (L x W x H)	7 cm x 7 cm x 1 cm
Weight	0.05 kg
