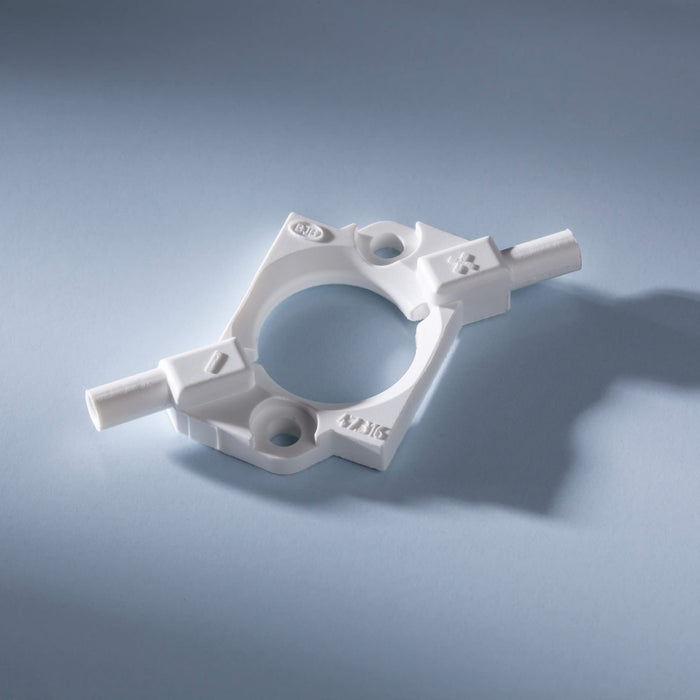

BJB connection element for Nichia COB-B family 19x16mm, type 036-048-060-072

BJB connection element for Nichia COB-B family - Optimal connection to your lighting solutions

Maximum efficiency and optimal management with BJB

The BJB connection element for Nichia COB-B family enables fast and efficient wiring of your LEDs via push-wire contacts. Safe and effective heat dissipation is ensured by the use of high-quality PBT in the housing. This not only supports the longevity of your LEDs, but also their optimal light output.

Product features at a glance

• Efficient heat management: Excellent heat dissipation for long-term operation
• Push-wire contacts: Quick and easy wiring
• Easy replacement: Convenient replacement of LED modules
• Material: Robust PBT housing and CuSn contacts
• Compatibility: Suitable for Nichia COB-B LEDs of series 036/066/110 and 121

Advantages of the BJB product family

• Screw fixing: No soldering necessary, fixation with M3 screws
• Max. Torque: For screw mounting 0.6Nm
• Stripping length: 6+1mm
• Cable cross-section: 0.25 - 0.5mm²

Please always observe the correct polarity of your LEDs when installing the connection element.

BJB - Your partner for innovative lighting management

As a renowned manufacturer, BJB offers a wide range of products and solutions for professional lighting management. Years of experience and a broad knowledge of the industry distinguish BJB - and we at LUMITRONIX are proud to be a distributor for BJB and to offer our customers attractive conditions and experienced service.

FAQ about BJB mounting bracket

1. Is the connection element also suitable for other COB LEDs?
   The connection element is specially designed for the Nichia COB-B series and is therefore optimally matched to it.
2. Do I have to do any soldering work during installation?
   No, the BJB mounting bracket can be fixed with M3 screws, soldering is not necessary.
3. Which cables can I use?
   The connection element is designed for cable cross-sections of 0.25 - 0.5mm².
