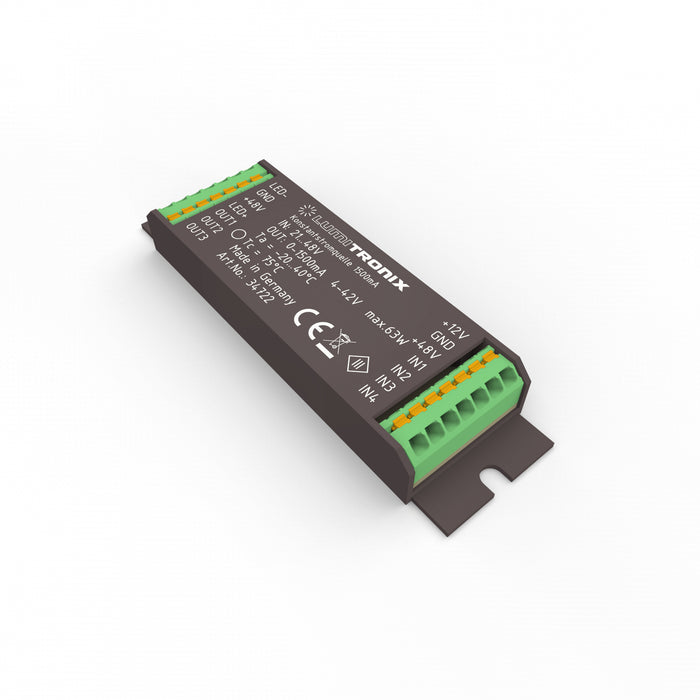

LUMITRONIX Konstantstromquelle 1500mA

Dimmable constant current source from LUMITRONIX® for operating constant current LED modules

The new constant current source from LUMITRONIX® acts as an extension for the versatile PowerController V2 control device and can only be operated in combination with it. The current of a KSQ module is up to 1500 mA. A constant voltage source with 48 V DC is recommended for use. This means that up to 4 KSQs can be controlled by one PowerController V2. The required LED current is controlled and adjusted via the firmware of the PowerController V2.

The constant current extension from LUMITRONIX® is aimed primarily at lighting manufacturers who are able to control LED modules or strips that are operated with constant current. The following LUMITRONIX® products, for example, are very suitable: PowerBar, SmartArray, LinearZ, MaxLine. But COBs and individual LEDs can also be operated with it. The constant current source is also dimmable, with dimming using a PWM signal from approx. 50 mA to 500 mA and analogue dimming from approx. 500 mA to 1500 mA. The transition between both areas occurs automatically.

LUMITRONIX® - Smart LED product solutions from our own production

The German LED expert LUMITRONIX® offers innovative and customer-specific LED solutions from a single source. Thanks to our own development and state-of-the-art production in Germany, individual, made-to-measure products are possible without any problems. Benefit from more than 15 years of experience and quality Made in Germany!

Features of the constant current extension

• Input voltage 21 - 48 V (output 4 - 42 V, max. Vin -6 V)
• A constant current LED output with up to 1500 mA
• Output current continuously adjustable via the PowerController V2
• In combination with PowerController V2 also Casambi and DALI capable
• LED current is defined via the PowerController V2 firmware
• Integrated 12V power supply for PowerController V2
• Combines PWM and analogue dimming

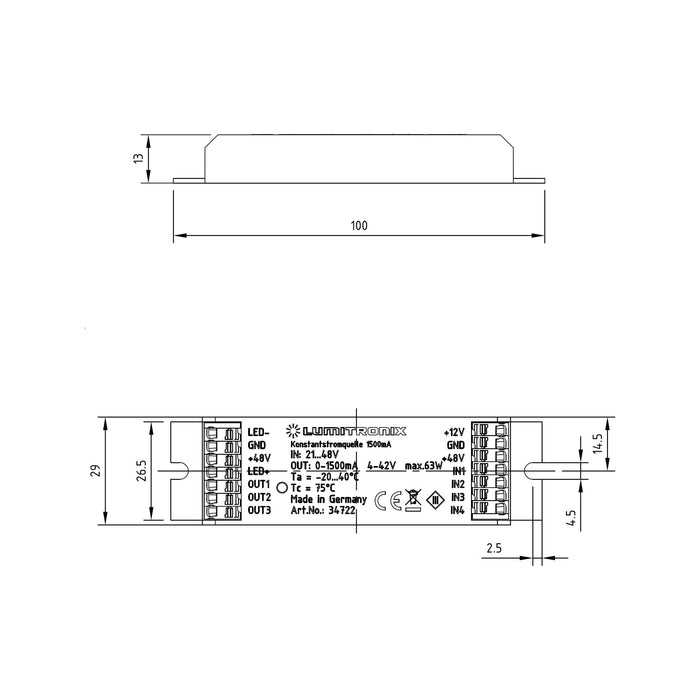

• Small dimensions (100 x 29 x 13 mm)
• Made in Germany

Applications of the KSQ extension

• Control of LED modules or LED strips for constant current operation (such as: PowerBar, SmartArray, LinearZ, MaxLine) or also COBs and individual LEDs
• Industrial applications
