PowerBar V3 LED module, aluminum, 12x Seoul Viosys UV LEDs, 365nm

PowerBar V3 LED module: Improved thermal management with 12 Seoul Viosys Z5 CUN66A1F UV LEDs (365 nm)

This third-generation LED module features targeted technical improvements, particularly in the area of thermal stability—a key aspect in the operation of high-performance UV LEDs. Additionally, an integrated NTC resistor enables temperature monitoring via an external control system.

Detailed features of the PowerBar V3 LED module

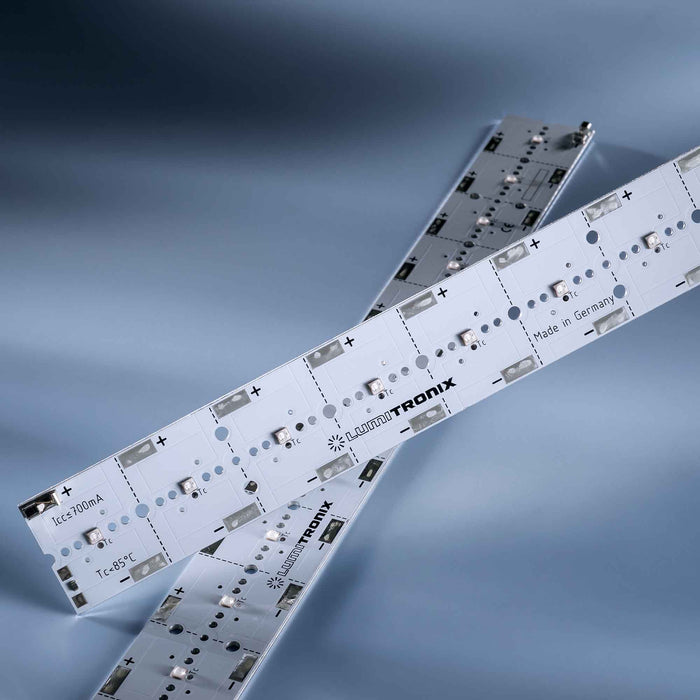

The LED strip consists of twelve evenly distributed UV LEDs on a continuous aluminum carrier. It features pre-assembled connection terminals, operates with constant current, and is mechanically prepared for the installation of optical components such as Ledil or Carclo lenses. This makes it a flexible solution for numerous industrial UV applications.

Here are the most important features of the PowerBar V3 LED module at a glance:

• 12x Seoul Viosys Z5 CUN66A1F UV LEDs with 365 nm wavelength
• Very high optical performance and lifetime
• Efficient heat management through aluminum board
• Integrated NTC resistor for temperature monitoring
• Can be divided into segments for individual application concepts
• Compatible with lens systems from Ledil and Carclo
• Dimensions: 286 x 28.5 x 4.5 mm
• 5-year warranty

Setting up a custom UV lighting system with PowerBar V3

The PowerBar V3 system makes it easy to create customized UV lights. The extensive range of accessories includes heat sinks, connectors, and matching lens solutions. For easy installation, our partner ZeroBrain offers a detailed instructional video on YouTube.

About LUMITRONIX and our sustainable production methods

As an experienced LED specialist, we at LUMITRONIX place great value on sustainability and efficiency. Our products are manufactured directly in Germany – in compliance with ecological standards and with a focus on quality. The PowerBar V3 LED module is an example of our innovative strength in the field of UV technology. Business customers also benefit from attractive terms and personalized consulting. Learn more at LUMITRONIX .

FAQ about the PowerBar V3 UV LED module

1. Is the PowerBar V3 module segmentable?
   Yes, the module can be divided into individual segments and used individually.


2. How can I monitor the temperature development during operation?
   An integrated NTC resistor enables connection to external control devices for temperature control.


3. Are suitable lenses already included?
   No, lenses are not included, but the module is compatible with various lenses from Ledil and Carclo.


4. What distinguishes the Seoul Viosys Z5 CUN66A1F UV LED?
   The Seoul Viosys Z5 CUN66A1F is a powerful 365 nm UV LED that features high efficiency, stable performance, and a long lifetime, making it ideal for industrial and commercial UV applications.
