Seoul Viosys UV-B SMD LED CUD1GF1B, 310nm

by Seoul

Powerful UV-B SMD LED

Deep ultraviolet LED with 310 nm wavelength for disinfection applications
Low thermal resistance for efficient heat dissipation and stable performance
SMT solderable and compatible with standard surface mounting techniques
Lead-free, environmentally friendly product according to RoHS guidelines

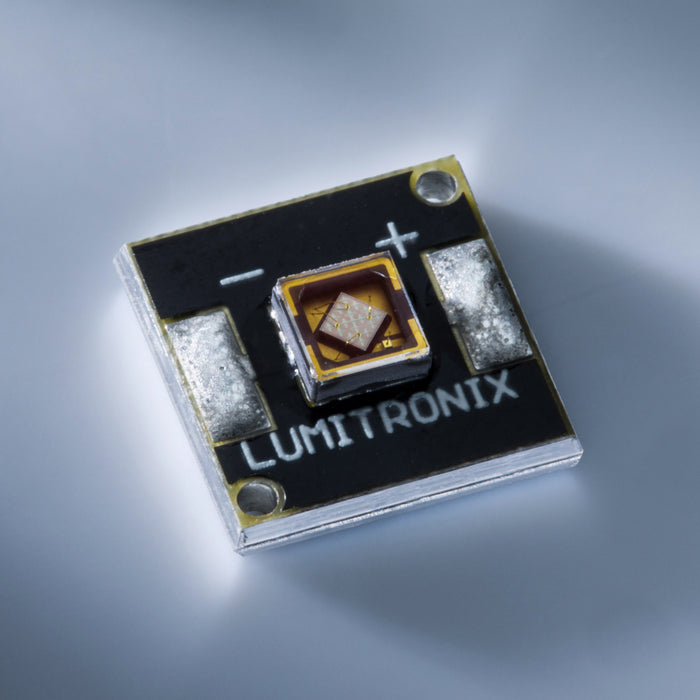

Powerful UV-B SMD LED on mini board

Deep ultraviolet LED with 310 nm wavelength for disinfection applications
Low thermal resistance for efficient heat dissipation and stable performance
Pre-mounted on a 10x10 mm aluminum board for easy installation
Lead-free, environmentally friendly product compliant with RoHS guidelines

€5,80 - €8,32

€8,32

€5,80 - €8,32

€8,32

Availability:

Sold out

Availability:

In stock

Quantity

Versand und Preisinformation

Versandkostenfrei ab 89 €, sonst 5,70 € innerhalb Deutschlands

Mindermengenzuschlag bei unter 20 € Bestellwert: 2 € (werden direkt auf die Versandkosten aufgeschlagen)

Preise inkl. MwSt. und zzgl. Versand. Vergleichspreise und Rabatte beziehen sich auf die unverbindliche Preisempfehlung des Herstellers.

Seoul Viosys UV-B SMD LED CUD1GF1B, 310nm

The Seoul Viosys UV-B SMD LED CUD1GF1B is a deep ultraviolet light-emitting diode with a peak emission wavelength of 310 nm. It is ideal for applications such as air and water disinfection, as well as chemical and biological analysis. The CUD1GF1B from Seoul Viosys features an advanced SMD design and low thermal resistance. Encapsulated in a ceramic package with an optically transparent window, it offers reliability and efficiency for demanding applications. In addition, the LED is already pre-assembled on a 10x10mm aluminum board, which simplifies installation considerably.

Key features of the CUD1GF1B

Deep ultraviolet LED: peak wavelength of 310 nm
Low thermal resistance: Efficient heat dissipation for stable performance
SMT solderable: Compatible with standard surface mounting techniques
Pre-assembled: Supplied on 10x10mm aluminum board for easy handling
Lead-free product: Environmentally friendly and RoHS compliant

Diverse areas of application

Disinfection: Effective sterilization of air and water
Fluorescence spectroscopy: Precise analysis of fluorescent substances
Chemical and biological analysis: Reliable results in laboratory applications

About Seoul Viosys

Seoul Viosys is a leading manufacturer of UV LEDs with a wide range of wavelengths from UVC to UVA. The company holds over 4,000 patents worldwide and offers innovative solutions for various applications, including industrial curing, air and water purification, and disinfection.

Safety instructions when handling UV LEDs

Ultraviolet radiation can be harmful to skin and eyes. Therefore, appropriate protective measures are required when handling UV LEDs:

Eye protection: Always wear UV protective goggles to avoid eye damage.
Skin protection: Avoid direct skin contact with UV radiation to prevent burns and long-term damage.
Safe installation: Ensure that the LED is installed in a closed or shielded enclosure to avoid uncontrolled UV exposure.
Warnings: Inform users and employees about the dangers of UV radiation and point out appropriate protective measures.
No direct eye contact: Never look directly into the UV LED, even with protective goggles.

Following these safety precautions will help minimize risks and ensure safe use of UV LEDs.

FAQ about the Seoul Viosys UV-B SMD LED CUD1GF1B

How do I connect the CUD1GF1B correctly?
The anode and cathode should be connected according to the markings on the case. Be careful not to exceed the maximum forward voltage of 6 V.
What current is optimal for operation?
The typical operating current is 150 mA. It is recommended not to exceed this value to ensure a long service life.
What cooling measures are necessary?
Due to its low thermal resistance, the LED can dissipate heat efficiently. However, adequate cooling should be provided to keep the operating temperature within the optimal range.

Technical Details
SKU	42958
Brand	Seoul
Manufacturer code	42958
Size (L x W x H)	1 cm x 1 cm x 0.3 cm
Weight	0.01 kg
Categories Nr. 25 in High Power LEDs (from 1 W) SMD LEDs (up to 1 W) Nr. 27 in UV(C) LEDs Nr. 7 in UV-LEDs und UV-LEDs auf Platine
Data sheet Seoul Viosys CUD1GF1B UV SMD LED, on 10x10mm PCB, 310nm (PDF)
