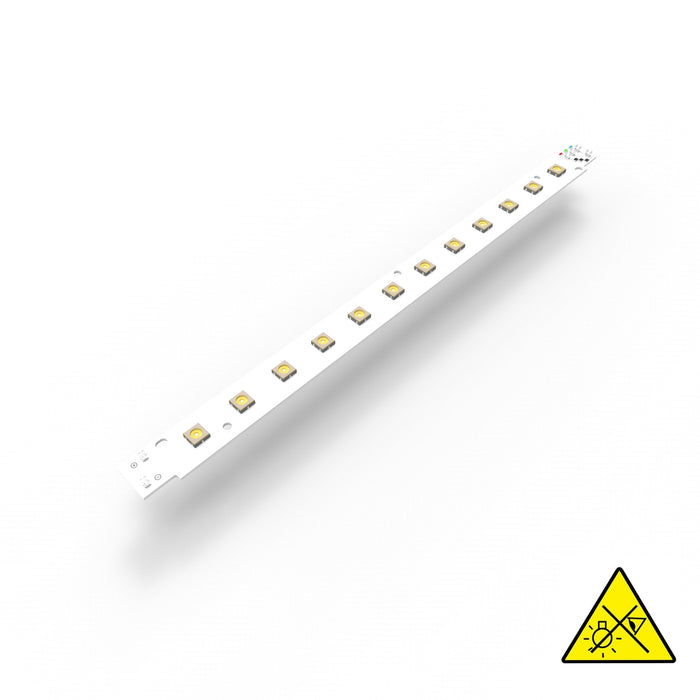

Violet UV LED module, 12x Nichia NCSU434B UV LEDs, 281x19.2mm

Violet UV LED module, 12x Nichia NCSU434B UV LEDs, 281x19.2mm

LUMITRONIX

Powerful UVB LED module for professional applications

  • Equipped with 12 Nichia NCSU434B UV LEDs (308 nm, 1080 mW)
  • High-performance UVB module for industrial and medical applications
  • Constant current operation at 1050 mA for maximum efficiency
  • Integrated status LEDs in red, green, and blue
  • Robust construction and flexible control options

High-performance UVA LED module with 330 nm wavelength

  • Equipped with 12 Nichia NCSU434B UV LEDs (330 nm, 1200 mW)
  • Efficient UVA light source for industrial and medical applications
  • Constant current operation at 1050 mA for high performance and stability
  • Ideal for material inspection, phototherapy, curing, and fluorescence excitation
  • Integrated status LEDs (red, green, blue) for operation monitoring
€252,02 - €252,02
€252,02
€252,02 - €252,02
€252,02
Availability:
In stock
Availability:
In stock
Versand und Preisinformation

Versandkostenfrei ab 89 €, sonst 5,70 € innerhalb Deutschlands

Mindermengenzuschlag bei unter 20 € Bestellwert: 2 € (werden direkt auf die Versandkosten aufgeschlagen)

Preise inkl. MwSt. und zzgl. Versand. Vergleichspreise und Rabatte beziehen sich auf die unverbindliche Preisempfehlung des Herstellers.

Zubehör - Redaktionell ausgewählt

Entdecken Sie weitere Highlights von LUMITRONIX

LumiFlex700 PRO R2R LED Streifen, 24V, 5m, 2700K, Warmweiß, 9050lm, CRI95 pic2 39227
LumiFlex700 PRO R2R LED Streifen, 24V, 5m, 2700K, Warmweiß, 13900lm, CRI80 39223

LumiFlex700 PRO R2R LED strip, 24V, 5m

€125,97 - €142,77
€125,97 - €142,77
€125,97 - €142,77
€125,97
Only 1 left!
Energieeffizienzklasse D

Flexibility and efficiency made in Germany The new LumiFlex700 Pro LED strip has been manufactured in a reel-to-reel process on our state-of-th...

View full details
€125,97 - €142,77
€125,97 - €142,77
€125,97 - €142,77
€125,97
LumiFlex700 ECO R2R LED Streifen, 24V, 5m, 2700K, Warmweiß, 3600lm, CRI95 pic2 38671
LumiFlex700 ECO R2R LED Streifen, 24V, 5m, 2700K, Warmweiß, 4700lm, CRI80 38667

LumiFlex700 ECO R2R LED strip, 24V, 5m

€33,53 - €41,93
€33,53 - €41,93
€33,53 - €41,93
€33,53
Only 5 left!
Energieeffizienzklasse F

Flexibility and efficiency Made in Germany - The LED strip for everyone The new LumiFlex700 Eco LED strip has been manufactured in a reel-to-reel...

View full details
€33,53 - €41,93
€33,53 - €41,93
€33,53 - €41,93
€33,53
LED-Schraube Pro, im Chromgehäuse, wassergeschützt, IP67, 12V, kaltweiß pic2 25001
LED-Schraube Pro, im Chromgehäuse, wassergeschützt, IP67, 12V, rot 25602

LED screw Pro, in chrome housing, waterproof, IP67

€3,32 - €3,32
€3,32
€3,32 - €3,32
€3,32
in stock

The expert choice: LUMITRONIX LED screw Pro, in a chrome housing, water-protected, IP67 The LUMITRONIX LED screw Pro sets new standards in term...

View full details
€3,32 - €3,32
€3,32
€3,32 - €3,32
€3,32
MultiBar44 LED-Streifen, 44 LEDs, 50cm, 24V, Warmweiß, 850lm pic2 50860
MultiBar44 LED-Streifen, 44 LEDs, 50cm, 24V, Neutralweiß, 890lm 50859

MultiBar44 LED strip, 44 LEDs, 50cm, 24V

€19,24 - €19,24
€19,24
€19,24 - €19,24
€19,24
in stock
Energieeffizienzklasse D

First-class lighting technology with the LUMITRONIX MultiBar44 LED strip The LUMITRONIX MultiBar44 LED strips combine innovative technology, ve...

View full details
€19,24 - €19,24
€19,24
€19,24 - €19,24
€19,24
LumiFlex350 ECO R2R LED Streifen, 24V, 5m, 4000K, Neutralweiß, 3400lm pic2 36349
LumiFlex350 ECO R2R LED Streifen, 24V, 5m, 2700K, Warmweiß, 3045lm 36348

LumiFlex350 ECO R2R LED strip, 24V, 5m

€23,10 - €23,10
€23,10
€23,10 - €23,10
€23,10
in stock
Energieeffizienzklasse D

Flexibility and efficiency Made in Germany - The LED strip for everyone The new LumiFlex350 Eco LED strip has been manufactured in a reel-to-ree...

View full details
€23,10 - €23,10
€23,10
€23,10 - €23,10
€23,10
MiniMatrix LED-Flächenmodul neutralweiß 24V, 16 LEDs, 6x6cm, 4000K, 300lm pic2 52716
MiniMatrix LED-Flächenmodul neutralweiß 24V, 4 LEDs, 3x3cm, 4000K, 75lm 52715

MiniMatrix LED area module neutral white 24V

€2,01 - €167,23
€2,01 - €167,23
€2,01 - €167,23
€2,01
in stock

MiniMatrix LED panel module neutral white 24V - Innovative product from LUMITRONIX The MiniMatrix LED panel module neutral white 24V is an advan...

View full details
€2,01 - €167,23
€2,01 - €167,23
€2,01 - €167,23
€2,01
LumiFlex COB LED Streifen, 24V, 5m, 4000K, Neutralweiß, 4500lm, CRI90 pic2 39850
LumiFlex COB LED Streifen, 24V, 5m, 3000K, Warmweiß, 4200lm, CRI90 39849
Save 11% Save %

LumiFlex COB LED strip, 24V, 5m

€75,55
€75,55 - €75,55
€75,55
€67,14
€67,14 - €67,14
€67,14
in stock
Energieeffizienzklasse F

The LumiFlex Eco COB strip combines the flexibility of an LED strip with the high efficiency and light output of COBs. The LED strip offers a lumin...

View full details
€75,55
€75,55 - €75,55
€75,55
€67,14
€67,14 - €67,14
€67,14
Save 11% Save %
SmartArray L6 LED-Punktlichtquelle, 4W, 2700K warmweiß 53781
SmartArray L6 LED-Punktlichtquelle, 4W, 3000K warmweiß pic2 53783

SmartArray L6 LED point light source, 4W

€5,80 - €5,80
€5,80
€5,80 - €5,80
€5,80
in stock
Energieeffizienzklasse C

So that you can design your products even more individually in the future, we now offer you the choice between the color temperatures 2700K, 3000K...

View full details
€5,80 - €5,80
€5,80
€5,80 - €5,80
€5,80
LumiFlex700 PRO R2R LED Streifen, Tunable White, 5280lm, CRI95, 24V, 5m pic2
LumiFlex700 PRO R2R LED Streifen, Tunable White, 5280lm, CRI95, 24V, 5m, Tunable White, 5280lm, CRI95 39240

LumiFlex700 PRO R2R LED Strip, Tunable White, 5280lm, CRI95, 24V, 5m

€167,98 - €167,98
€167,98
€167,98 - €167,98
€167,98
in stock
Energieeffizienzklasse E

Flexibility and efficiency made in Germany The new LumiFlex700 TW Pro LED strip has been manufactured in a reel-to-reel process on our state-of...

View full details
€167,98 - €167,98
€167,98
€167,98 - €167,98
€167,98
MultiBar44 LED-Streifen Black Edition, 44 LEDs, 50cm, 24V, Warmweiß, 850lm pic2 39888
MultiBar44 LED-Streifen Black Edition, 44 LEDs, 50cm, 24V, Neutralweiß, 890lm 39891

MultiBar44 LED strip Black Edition, 44 LEDs, 50cm, 24V

€19,24 - €19,24
€19,24
€19,24 - €19,24
€19,24
in stock
Energieeffizienzklasse D

The black MultiBar LED strips impress with their unique versatility. Thanks to the easy-to-use plug-in system, the strips can be connected (withou...

View full details
€19,24 - €19,24
€19,24
€19,24 - €19,24
€19,24
LumiFlex350 PRO R2R LED Streifen, 24V, 5m, 2700K, Warmweiß, 5450lm, CRI90 pic2 35079
LumiFlex350 PRO R2R LED Streifen, 24V, 5m, 2700K, Warmweiß, 6500lm, CRI80 35077

LumiFlex350 PRO R2R LED strip, 24V, 5m

€83,95 - €88,15
€83,95 - €88,15
€83,95 - €88,15
€83,95
in stock
Energieeffizienzklasse E

The LumiFlex350 PRO R2R LED strip from LUMITRONIX: A masterpiece of flexibility and efficiency Discover our LumiFlex350 PRO R2R LED strip - a hig...

View full details
€83,95 - €88,15
€83,95 - €88,15
€83,95 - €88,15
€83,95
SmartArray Q1 LED-Punktlichtquelle, quadratisch warmweiß 2700K 24V pic2
SmartArray Q1 LED-Punktlichtquelle, quadratisch warmweiß 2700K 24V, SmartArray Q1 LED-Modul quadratisch warmweiß 2700K 24V 32019

SmartArray Q1 LED point light source, square warm white 2700K 24V

€2,44 - €2,44
€2,44
€2,44 - €2,44
€2,44
in stock
Energieeffizienzklasse E

Despite its small size, the square SmartArray Q1 LED module is a real powerhouse. Equipped with a Nichia LED of the 481 series with a CRI value of...

View full details
€2,44 - €2,44
€2,44
€2,44 - €2,44
€2,44
MultiBar24 LED-Streifen, 24 LEDs, 50cm, 24V, Warmweiß, 335lm pic2 50857
MultiBar24 LED-Streifen, 24 LEDs, 50cm, 24V, Neutralweiß, 350lm 50856

MultiBar24 LED strip, 24 LEDs, 50cm, 24V

€8,32 - €8,32
€8,32
€8,32 - €8,32
€8,32
in stock
Energieeffizienzklasse D

MultiBar24 LED strips from LUMITRONIX: versatile, efficient and guaranteed high performance! LUMITRONIX presents the latest edition of its well-...

View full details
€8,32 - €8,32
€8,32
€8,32 - €8,32
€8,32
LumiFlex700 PRO R2R LED Streifen, Tunable White, 7150lm, 24V, 5m pic2
LumiFlex700 PRO R2R LED Streifen, Tunable White, 7150lm, 24V, 5m, Tunable White, 7150lm 39239

LumiFlex700 PRO R2R LED Strip, Tunable White, 7150lm, 24V, 5m

€151,18 - €151,18
€151,18
€151,18 - €151,18
€151,18
in stock
Energieeffizienzklasse C

Flexibility and efficiency Made in Germany The new LumiFlex700 TW Pro LED strip has been manufactured in a reel-to-reel process on our state-of...

View full details
€151,18 - €151,18
€151,18
€151,18 - €151,18
€151,18
LED Schraube Eco, 12V, Lichtpunkt, Blau pic2 26402
LED Schraube Eco, 12V, Lichtpunkt, Warmweiß 26002

LED screw Eco, 12V, light point

€1,25 - €1,25
€1,25
€1,25 - €1,25
€1,25
in stock

LUMITRONIX LED screw Eco: Elegant and practical lighting point solution The LED screw Eco from LUMITRONIX is an excellent warm white light point s...

View full details
€1,25 - €1,25
€1,25
€1,25 - €1,25
€1,25

Violet UVB LED module from LUMITRONIX – For efficient technical and medical applications

The Violet UVB LED module is a powerful and reliable solution for applications in materials testing, medical therapies, and special disinfection and curing processes. With high radiant output and a wavelength of 308 nm, the module offers a wide range of applications for professional users.
Introduction to the Violet UVB LED module and its functions

Developed and manufactured by LUMITRONIX, the Violet UVB LED module combines years of LED expertise with state-of-the-art UVB technology. Equipped with 12 Nichia NCSU434B UV LEDs emitting at a wavelength of 308 nm and achieving a radiant output of 1080 mW, this module is ideal for demanding industrial and medical applications. It operates at a constant current of 1050 mA and can be flexibly controlled via external controllers.

Warnings and safety measures
  • Safety guidelines: This product is sold exclusively to trained professional users who can ensure the safe handling of UVB radiation.
  • Avoid eye contact: Always wear suitable UV protective goggles when operating the module to avoid irreversible damage to the eyes.
  • Wear protective clothing: Wear appropriate protective clothing to protect skin and tissues from UVB radiation.
  • Safety distance: Make sure that no unprotected people are in the area of UVB radiation.
  • Treatment in case of exposure: In case of accidental exposure of skin or eyes, take appropriate measures immediately and seek medical advice if in doubt.
Features of the Violet UVB LED module from LUMITRONIX
  • Constant current operation: Operates at 1050 mA for maximum efficiency
  • High-performance UVB LEDs: 12 Nichia NCSU434B UV LEDs (308 nm), 1080 mW optical power
  • Status indicators: Integrated status LEDs in red, green and blue for monitoring operation
Further variants and additions

Discover other variants of the violet modules as well as powerful UV LEDs from Nichia for the most demanding industrial and medical applications in our range.

FAQ about the Violet UVB LED module
  1. How does the Violet UVB LED module work?
    The module is operated with a constant current of 1050 mA.

  2. What protective measures should be observed when using it?
    Appropriate UV protective goggles and protective clothing must be worn. It must also be ensured that no unprotected persons are in the radiation area.

  3. What colors do the status LEDs have?
    The module has status LEDs in red, green and blue.

  4. For which applications is the module suitable?
    The module is ideal for medical applications (e.g. phototherapy), material testing, curing processes and special disinfection solutions in the UVB spectrum.

From development to production to sales – at LUMITRONIX , you benefit from 20 years of experience, comprehensive industry knowledge, and innovative technology. Our LED modules and components, manufactured in Germany, contribute to greater sustainability and technological excellence.

Technical Details
SKU
42949
Brand
Light color
UV
Lifetime (h)
12000 h
Manufacturer code
42949
Light source
12
Viewing Angle (°)
120 (°)
Power (W)
21.0 (W)
Voltage (V)
20.0 (V)
Electrical current (mA)
1050 (mA)
Size (L x W x H)
28.1 cm x 1.92 cm x 0.3 cm
Weight
0.25 kg
