BackMatrix49 Performer LED-Modul, 49 LEDs, 28x28cm, 24V, Tunable White pic3 36746

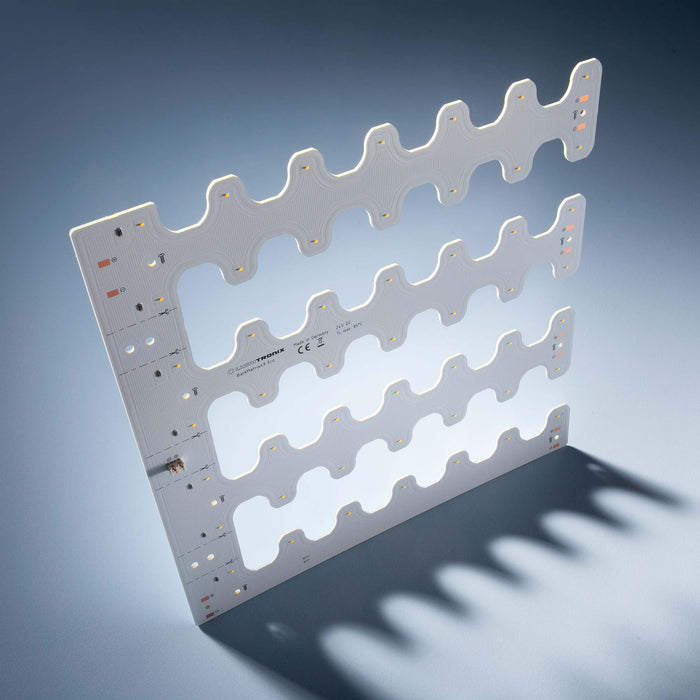

BackMatrix49 Performer LED module, 49 LEDs, 28x28cm, 24V

by LUMITRONIX

3 years warranty, no cooling required

  • High efficiency Nichia LEDs
  • Output up to 1160 lm
  • Efficiency up to 121 lm/W
  • No cooling required
$23.00 - $32.00
$23.00
$23.00 - $32.00
$23.00
Availability:
In stock
Availability:
Out of stock
Availability:
in stock, ready to be shipped
Shipping and price information

Orders placed before 3 p.m. will be shipped the same day on weekdays if the items are in stock. Goods that are not available will be shipped immediately upon receipt of the goods.

Shipping costs:

  • 5,70€ within Germany
  • 13,90€ to EU, Switzerland, Liechtenstein
  • 39,90€ rest of the world


Prices include VAT (EU only) and plus shipping . Comparative prices and discounts refer to the manufacturer's recommended retail price.

Payable with PayPal, ApplePay, AmazonPay, Mastercard, Visa, SOFORT

Accessories - Editorially selected

Meanwell HLG 24V, Netzteil, HLG-150H-24B (24V - 150W) 95189

HLG-320H-24B (24V - 320W)

$73.00
View product
Auflege-Werkzeug für BackMatrix 95402

Lay-up tool for BackMatrix

$6.00
View product
Zuleitung, Querschnitt 2x 0,75mm², 5m, PVC 37592

Cable, cross section 2x 0.75mm², 5m, PVC

$4.00
View product

The high-performance BackMatrix49 LED module from LUMITRONIX - optimised for advertising and illuminated ceilings

The BackMatrix49 Performer LED module comes from LUMITRONIX and impresses with its impressive performance combined with high efficiency and versatility. Specially developed for large-area lighting applications, this 24V LED module is ideal for manufacturers of illuminated ceilings and advertising panels, but also provides brilliant light in all types of area lighting.

Features and benefits of the BackMatrix series

Equipped with 49 Nichia T02 LEDs in a 3-step MacAdam binning, the BackMatrix series offers uniform light distribution and excellent quality. A typical luminous flux of up to 1160 lm and an efficiency of up to 121 lm/W make this product the first choice for area lighting. The sophisticated thermal management does not require active cooling and thus increases the energy efficiency and service life of the module. The high quality is underlined by a 3-year warranty.

Easy connection and mounting

The BackMatrix49 Performer LED module offers both a solderless installation option through insulation displacement connectors and a traditional soldering method through prepared solder pads to meet different mounting requirements. This significantly simplifies setup and makes the product more attractive for a variety of different applications.

Features

  • 49 Nichia T02 LEDs: for uniform, high-quality light
  • Efficiency up to 121 lm/W: for energy-efficient application
  • Luminous flux up to 1160 lm: high light output for various applications
  • 3-year guarantee: sign of high quality and durability
  • Optimised for advertising and luminous ceilings: versatile application possibilities
  • Solderless connection possible: enables simple and sustainable installation
  • No cooling required: thanks to sophisticated thermal management
  • Uniform, white light: thanks to Nichia binning (3-Step Mac Adam)
  • Compact dimensions: 280 x 280 x 6.65 mm
Quality and innovation from LUMITRONIX

With over 20 years of experience,LUMITRONIX is proud to manufacture innovative, durable and sustainable LED products in Germany. As a provider of individual novel solutions and with market-leading production lines, LUMITRONIX is your reliable partner for LEDs and LED components.

Below you will find an instruction video for backlighting a logo with BackMatrix modules. Have fun!

Choosing the optimal BackMatrix variant

The BackMatrix49 Performer LED module is available in two colour variants (2700 K and 5000 K). This allows it to be optimally adapted to different requirements and applications. The favourable pricing also enables cost-efficient solutions for area lighting. At the same time, thanks to Nichia's high-quality LEDs, it meets high demands in terms of quality, performance and service life.

FAQ about BackMatrix49 Performer LED module
  1. Do the LED modules need to be cooled?
    No, thanks to clever thermal management, no additional cooling is required.

  2. What light colour do the LEDs have?
    You can choose between the colour variants 2700 K (warm white) and 5000 K (cool white).

  3. How are the LED modules connected?
    The LED modules can be connected using insulation displacement connectors or solder pads. This allows for easy and quick mounting.
Technical Details
SKU
36742
Brand
Added
02.03.2021
Energy efficiency class
A+
Life cycle (h)
60000 h
Manufacturer code
36742
Efficiency (lm/W)
121 (lm/W)
Luminous flux (lm)
1160 (lm)
Color temperature (K)
2700 (K)
CRI (Ra)
80
Power (W)
9.58 (W)
Voltage (V)
24.0 (V)
Electric Current (mA)
399 (mA)
GTIN
4260127455473
Size (L x W x H)
28 cm x 28 cm x 0.67 cm
Weight
0.166 kg
