Excellent price/performance ratio

  • High power SMD LED UV
  • 1400mW output, 385nm wavelength
  • Efficient general purpose application
  • World class manufacturer Nichia

Excellent price/performance ratio

  • High-power UV SMD LED
  • From top manufacturer Nichia
  • Wavelengths: 385nm and 405nm
  • Optimal for professional applications

Highly functional UV LED with 385nm

  • High-power UV SMD LED
  • With 10x10mm board, 1030mW
  • Wavelength at 385nm
  • From top LED manufacturer Nichia
Original price €25,30 - Original price €39,57
Original price
€25,30 - €39,57
Current price €27,50
Only 4 left!
Sold out
in stock, ready to be shipped
Shipping and price information

13,90€ to UK and within the EU.
All countries/shipping rates.

Taxes and duties may apply outside the EU.

Prices incl. VAT and plus shipping. Comparison prices and discounts refer to the manufacturer's recommended retail price.

Payable with PayPal, ApplePay, AmazonPay, Mastercard, Visa, SOFORT

Accessories - Editorially selected

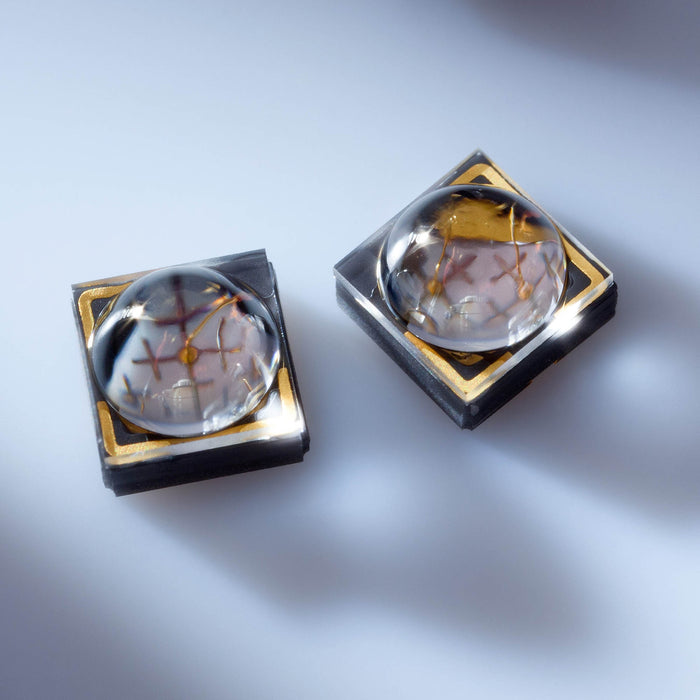

Nichia NVSU233A-D1 UV SMD LED: top quality without compromise

Discover the Nichia NVSU233A-D1 UV SMD LED that sets the standard in efficiency, lifetime and brightness. Specially designed for industrial use, this LED comes up trumps with its outstanding performance

The renowned manufacturer Nichia, a global market leader and inventor of the blue and thus also white light emitting diode, brings its years of research and development expertise to bear with the Nichia NVSU233A-D1 UV SMD LED. This model delivers peak performance in two selectable wavelengths and is ideal for special applications in medical technology, testing and sorting equipment and cameras with UV light.

Biological safety and actinic UV hazard

The NVSU233A-D1 UV SMD LED has a high biological safety rating, with risk group 3 (EN 62471). UV-A could cause clouding of the lens of the eye (UV cataract) in prolonged exposures. It is therefore recommended to wear the necessary protective clothing when handling this LED.

Properties of the Nichia NVSU233A-D1 UV SMD LED
  • 233 package
  • Available wavelengths: 385nm and 405nm
  • Risk group 3 (EN 62471)
  • Dimensions (LxWxH): 3.5x3.5x2.73mm
About Nichia

As a distributor of Nichia, the world market leader for LEDs, we at< a href=''> LUMITRONIX offer particularly attractive conditions and distribution solutions for our customers. As the inventor of the blue (and therefore also white) light-emitting diode, Nichia is always setting new standards in LED technology.

FAQ for the Nichia NVSU233A-D1 UV SMD LED
  1. Which applications are suitable for the Nichia NVSU233A-D1 UV SMD-LED?
    This LED is best suited for industrial applications, for example in medical technology, in testing and sorting equipment or in cameras with UV light.
  2. What protective measures should I take when handling the NVSU233A-D1?
    Since the LED emits UV radiation, the necessary protective clothing should be worn when handling it to minimise the risk of UV cataracts.
  3. What wavelengths are available for the NVSU233A-D1?
    The LED is available in two wavelengths: 385nm and 405nm.
Technical Details
Light colour
Manufacturer code
NVSU233AT-D1 U385/P8d21-P10d21/MH1
Viewing Angle (°)
60 (°)
Power (W)
3.0 (W)
Voltage (V)
3.65 (V)
Electric Current (mA)
1000 (mA)
Size (L x W x H)
0.03 cm x 0.03 cm x 0.03 cm
0.0 kg
