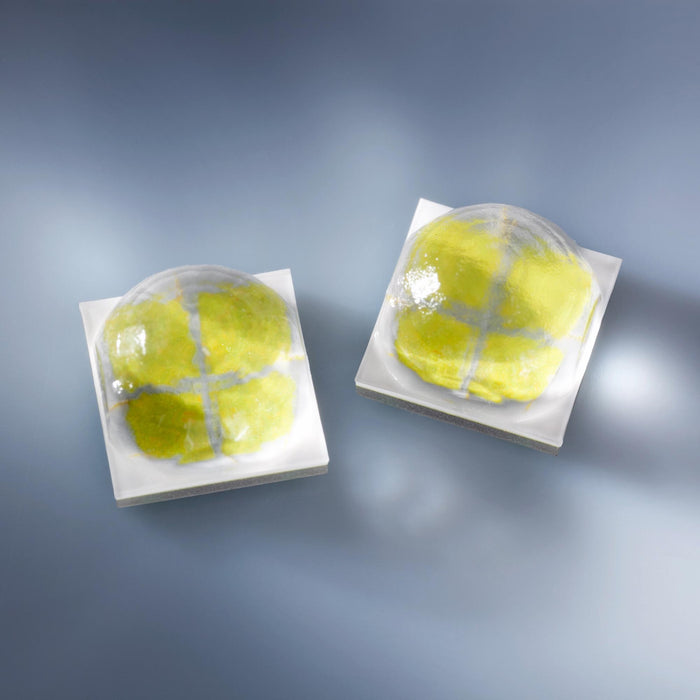

Cree XHP50 SMD LED, 2700K, CRI 80

New standards for lumen density thanks to new SC5 technology

SC5 technology for high lumen density
Up to 3000mA (6V) load capability
Low thermal resistance: 1.2°C/W

High-power LED without PCB, 840lm.

High-power LED from Cree
High light output of 840lm
Colour temperature of 2700K
Good colour rendering index CRI 80

€3,15 - €9,96

€9,96

€3,15 - €9,96

€9,96

Availability:

in stock, ready to be shipped

Availability:

Sold out

Quantity

Shipping and price information

13,90€ to UK and within the EU.
All countries/shipping rates.

Taxes and duties may apply outside the EU.

Prices incl. VAT and plus shipping. Comparison prices and discounts refer to the manufacturer's recommended retail price.

Payable with PayPal, ApplePay, AmazonPay, Mastercard, Visa, SOFORT

Accessories - Editorially selected

Arctic Silver 5 Wärmeleitpaste (3.5g) 60007

Arctic Silver 5 Thermal Compound (3.5g)

€7,52

View product

Fischer Elektronik Wärmeleitkleber, WLK DK 4, 2x2ml 31986

Fischer Elektronik thermally conductive adhesive

from

€12,43

View product

Thermally conductive adhesive pad for star board

€1,25

View product

LEDiL Anschlusselement C13708 PF-SOCKET-VERO10 32002

LEDiL connection element C13708_PF-SOCKET-VERO10

€0,50

View product

Meanwell LCM, Konstantstromquelle, LCM-40 (350 - 1050mA) 95235

Meanwell LCM, constant current source

from

€16,46

View product

Meanwell LPC Konstantstromquelle, LPC-20-350, 350 mA 95058

Meanwell LPC constant current source

from

€10,92

View product

LUMITRONIX micro constant current source

€12,52

View product

Cree XHP50 SMD LED revolutionised by SC5 technology

Discover not only a new level of lumen density with the Cree XHP50 SMD LED, but also a platform that sets the standard in reliability and cost efficiency. With its impressive performance, the Cree LED is an optimal choice for diverse applications.

The Cree XHP50 SMD LED: A milestone in LED technology

Cree's proprietary SC5 technology allows the XHP50 SMD LED to achieve twice the luminous efficacy of a conventional single-chip LED at maximum current - with similar efficiency and without increasing the package footprint. This leads to a longer service life at higher operating temperatures. Overall, the thermal, mechanical and optical costs of the XHP50 are significantly reduced.

The advantages of the Cree XHP50 SMD LED at a glance

Power handling: Up to 3000mA (6V) / 1500mA (12V)
Technology: Innovative SC5 platform
Precision: 85° binning
Efficiency: Low thermal resistance with 1.2°C/W
Flexibility: Wide beam angle of 120
Application: Reflowable

The manufacturer: Cree

Cree is known for its innovations in the LED sector and sets a new standard with the XHP50 SMD LED. The company's many years of experience and technical know-how ensure outstanding quality and performance of its products.

Quality and sustainability at LUMITRONIX

As the operator of LEDs.de, we at LUMITRONIX offer you a wide product range that includes both individual LEDs and ready-made solutions. These are manufactured in Germany under the strictest quality tests and ecological standards. As a customer, you benefit not only from our durable products and efficient technologies, but also from our comprehensive range of services.

FAQ about the Cree XHP50 SMD LED

What is special about SC5 technology?
SC5 technology provides improved lumen density, reliability and cost efficiency. It also offers the ability to extract more light from smaller areas.

What does 85° binning mean?
85° binning refers to the grouping of LEDs by colour and brightness at a temperature of 85 degrees Celsius. This procedure achieves a significant improvement in colour consistency.

In which applications can the Cree XHP50 SMD LED be used?
The Cree XHP50 SMD LED is suitable for a wide range of applications, e.g. lighting, backlighting, signal light and much more.

Technical Details
SKU	68485
Brand	Cree
Light colour	Warm white
Manufacturer code	XHP50A-00-0000-0D0HG427G
Luminous flux (lm)	840 (lm)
Color temperature (K)	2700 (K)
CRI (Ra)	80
Viewing Angle (°)	120 (°)
Power (W)	8.05 (W)
Voltage (V)	11.5 (V)
Electric Current (mA)	700 (mA)
GTIN	4260127457408
Size (L x W x H)	2.1 cm x 1.98 cm x 0.15 cm
Weight	0.002 kg
Categories Nr. 4 in High Power LEDs (from 1 W) Nr. 6 in SMD LEDs (up to 1 W)
Data sheet Cree XHP50 SMD-LED, with PCB (Star), 840lm, 2700K, CRI 80 (PDF) Dimensioned drawing Cree XHP50 SMD-LED, with PCB (Star), 840lm, 2700K, CRI 80 (PDF)
