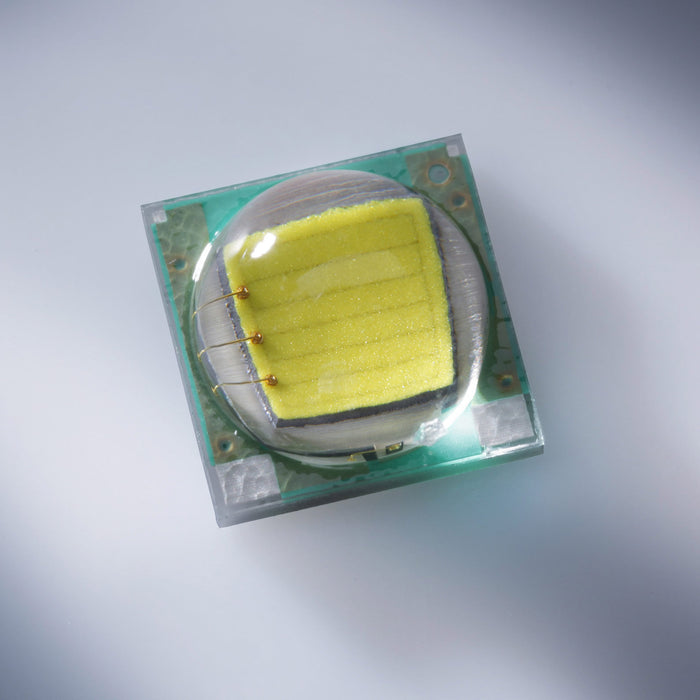

Cree XM-L 2 U2 SMD LED

Efficient up to 1000 lumens with 100lm/W

Industry's brightest LED class
Efficiency of 100lm/W
Low thermal resistance
Reflow - JEDEC J-STD-020 compatible

Efficient 1000 lumen output with 100lm/W

Efficient output of 1000 lumens
100lm/W luminosity
High-power LED technology
Low thermal resistance

€6,48 - €7,16

€7,16

€6,48 - €7,16

€7,16

Availability:

in stock, ready to be shipped

Availability:

Sold out

Quantity

Shipping and price information

13,90€ to UK and within the EU.
All countries/shipping rates.

Taxes and duties may apply outside the EU.

Prices incl. VAT and plus shipping. Comparison prices and discounts refer to the manufacturer's recommended retail price.

Payable with PayPal, ApplePay, AmazonPay, Mastercard, Visa, SOFORT

Accessories - Editorially selected

Arctic Silver 5 Wärmeleitpaste (3.5g) 60007

Arctic Silver 5 Thermal Compound (3.5g)

€7,52

View product

Thermally conductive adhesive pad for star board

€1,25

View product

Weller WE 1010 soldering station

now

€145,75 €193,19

View product

LUMITRONIX micro constant current source

€12,52

View product

LEDiL EVA 35mm LED-Linse, u. a. optimiert für Nichia, 13°-22° (enger Abstrahlwinkel), diffus 60171

LEDiL EVA 35mm LED lens, optimized for Nichia among other things

€2,34

View product

Optimum light intensity with the Cree XM-L 2 U2 SMD LED

The Cree XM-L 2 U2 SMD LED convinces with its high light output and extraordinary efficiency. With a capacity of up to 1000 lumens at 100lm/W efficiency, it offers a clear advantage over other models

Cree is known as a manufacturer for the development of efficient high-power LEDs. With the XM-L series, the company takes its industry-leading technology to a new level. The XM-L 2 U2 LED delivers 20% higher efficiency than Cree's proven XP-G series.

The performance advantages of the Cree XM-L 2 U2 SMD LED at a glance:

Efficiency: Up to 1000 lumens at an efficiency of 100lm/W.
Thermal Resistance: Low thermal resistance of 2.5 ° C/W for optimum performance.
Reflow: Complies with JEDEC J-STD-020C standard.
Heat dissipation: Electrically neutral heat dissipation increases life.

Wide range of applications

The Cree XM-L 2 U2 SMD LED is versatile. Among other things, it is ideally suited for

Street and road lighting: for optimum visibility and safety.
Outdoor lighting: Reliable light source outdoors.
LED replacement lamps: Energy-saving and long-lasting alternative to conventional light bulbs.
Commercial indoor lighting: For constant brightness in commercial and office spaces.
Industrial lighting: For work areas that require strong and constant lighting.

A true pioneer in LED technology: the manufacturer Cree

Cree is one of the world's leading producers in the LED industry and is known for its reliability and innovations in the field. The focus is on providing efficient, long-lasting LED light sources. With the XM-L series, Cree has once again proven why they are at the forefront of the industry

Discover the possibilities with LUMITRONIX

As specialists in LED lighting solutions, we at LUMITRONIX offer you an extensive range of LEDs and LED products. Benefit from our 20 years of experience, our broad industry knowledge and our specialised high-end production lines. Whether you are a small business, a tinkerer or a large enterprise, we have the right products and solutions for you. Discover the benefits of our business customer services.

FAQ about the Cree XM-L 2 U2 SMD LED

What is the light output of the Cree XM-L 2 U2 SMD LED?
The Cree XM-L 2 U2 SMD LED can achieve a light output of up to 1000 lumens.

How efficient is the Cree XM-L 2 U2 SMD LED?
The Cree XM-L 2 U2 SMD LED has an efficiency of 100lm/W. This makes it 20% more efficient than Cree's XP-G range.

In which areas can the Cree XM-L 2 U2 SMD LED be used?
The Cree XM-L 2 U2 SMD LED is ideal for street and road lighting, outdoor lighting, LED replacement lamps, commercial indoor lighting and industrial lighting.

Technical Details
SKU	68632
Brand	Cree
Light colour	cold white
Manufacturer code	XMLBWT-00-0000-0000U2051
Luminous flux (lm)	300 (lm)
Color temperature (K)	6500 (K)
CRI (Ra)	65
Viewing Angle (°)	125 (°)
Power (W)	2.0 (W)
Voltage (V)	2.85 (V)
Electric Current (mA)	700 (mA)
Size (L x W x H)	2.1 cm x 1.98 cm x 0.15 cm
Weight	0.002 kg
Categories Nr. 4 in SMD LEDs (up to 1 W)

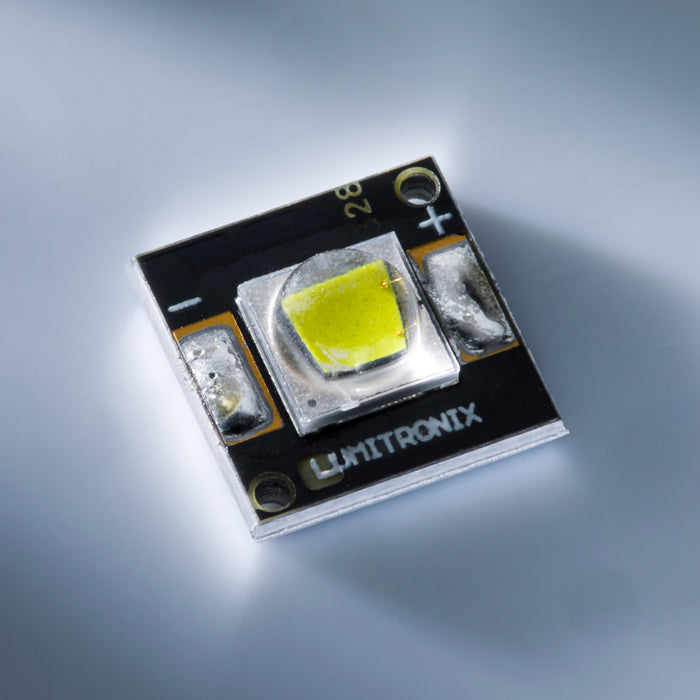

Dimensions Article 60052 Star PCB for Cree XML (PDF)

Technical Details
SKU	68633
Brand	Cree
Light colour	cold white
Manufacturer code	XMLBWT-00-0000-0000U2051
Luminous flux (lm)	300 (lm)
Color temperature (K)	6500 (K)
CRI (Ra)	65
Viewing Angle (°)	125 (°)
Power (W)	2.0 (W)
Voltage (V)	2.85 (V)
Electric Current (mA)	700 (mA)
Size (L x W x H)	1 cm x 1 cm x 0.35 cm
Weight	0.002 kg
Categories Nr. 4 in SMD LEDs (up to 1 W)
