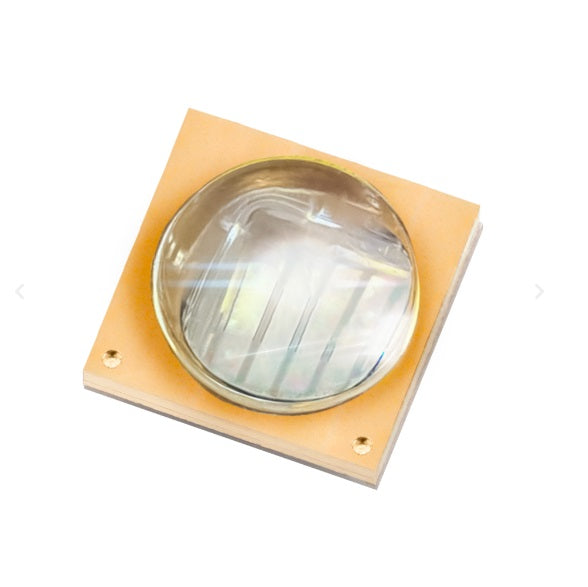

Bolb S3535-H UVC SMD-LED, 265nm, 170mW: Powerful disinfection with deep action
The Bolb S3535-H UVC SMD LED combines high optical performance with a short wavelength, thus offering ideal conditions for effective germ reduction in industrial applications.
Efficient sterilization with 265nm UVC radiation
With a wavelength of 265 nm—the maximum effective wavelength for inactivating microorganisms—and an impressive optical power of 170 mW, the compact Bolb S3535-H is ideal for demanding applications in air, water, and surface disinfection. The robust SMD design with a 3.5 x 3.5 mm package enables easy integration even in limited space.
- Series: S3535-H
- Wavelength: 265 nm
- Power: 170 mW
- Risk group: 3 (EN 62471)
- Dimensions (L x W x H): 3.5 x 3.5 x approx. 1.6 mm
Bolb – Specialist for UV-C LED technology
Bolb Inc. is a leading manufacturer of innovative UVC semiconductor technologies and focuses on the development of particularly powerful UV LEDs for professional use. Their high radiant output combined with a compact design makes Bolb LEDs the first choice for industrial applications in sterilization and disinfection.
Safety instructions for using UVC LEDs
The intense UVC radiation from this LED can be harmful to skin and eyes. Operation should only be carried out with appropriate protective measures. Be aware of possible reflections and ensure appropriate shielding from the radiation.
- Protective measures: UV protective goggles, gloves, UV-blocking clothing, face shield if necessary
- Exposure: Avoid direct contact with skin and eyes
- Reflections: Be careful with reflective materials such as metal or glass
FAQ about the Bolb S3535-H UVC SMD LED
- Is the Bolb S3535-H suitable for home use?
No, this LED is intended exclusively for industrial applications. The intense UVC radiation requires professional protective measures.
- How can I protect myself from UVC radiation when using it?
Wear UV-protective goggles, UV-shielding clothing, and gloves. Avoid any direct contact with the radiation.
- What do I need to consider regarding reflections?
UVC light can be reflected by shiny surfaces. Reflective materials in the work area should be avoided or covered.
LUMITRONIX is your experienced partner for high-performance LED solutions. With over 20 years of experience and highly specialized production, we supply reliable components for professional applications – including UVC disinfection. Learn more about our Bolb products and receive customized advice for your project.
Bolb S3535-H UVB SMD LED, 295nm, 150mW: Broadband disinfection with high power
The Bolb S3535-H UVB SMD LED at 295 nm impresses with strong optical performance in the UVB spectrum and is an interesting option for special hygiene solutions.
Reliable disinfection with 295 nm UVB radiation
With a wavelength of 295 nm and 150 mW of optical power, this high-performance LED provides a versatile basis for surface and air disinfection applications where a longer UV wavelength is desired. Its compact 3.5 x 3.5 mm SMD package allows for easy integration into professional systems.
- Series: S3535-H
- Wavelength: 295 nm (UVB)
- Power: 150 mW
- Risk group: 3 (EN 62471)
- Dimensions (L x W x H): 3.5 x 3.5 x approx. 1.6 mm
Bolb – Specialist for UV LED technology
Bolb Inc. is one of the leading manufacturers of high-performance UV LEDs, offering solutions for industrial applications where efficiency, quality, and reliability are paramount. The S3535-H series is known for its compact design and high radiant output.
Safety instructions for using UVB LEDs
UVB radiation can also be dangerous to the eyes and skin. Operation should only be carried out with appropriate protective clothing and shielding. Reflections from metal and glass surfaces should be taken into account.
- Protective measures: UV protective goggles, gloves, UV-absorbing clothing
- Exposure: Avoid direct contact with UV radiation
- Reflections: Reflective surfaces can reflect UV radiation
FAQ about the Bolb S3535-H UVB SMD LED (295nm)
- What is the effect of 295 nm UV light?
The wavelength is in the UVB spectrum and offers a moderate antimicrobial effect that is used specifically in certain applications.
- Is the LED suitable for private use?
No, the LED is intended for industrial use. Professional handling and protective measures are required.
- What applications are conceivable?
Suitable for air disinfection, material treatment, and special applications in laboratory environments.
As a specialist in LED technology, LUMITRONIX offers high-quality components for professional applications. Our many years of experience enable individual consulting and customized solutions. Learn more about Bolb UV LEDs and offers for large customers here.
Bolb S3535-H UVB SMD LED, 295nm, 150mW: Broadband disinfection with high power
The Bolb S3535-H UVB SMD LED at 295 nm impresses with strong optical performance in the UVB spectrum and is an interesting option for special hygiene solutions.
Reliable disinfection with 295 nm UVB radiation
With a wavelength of 295 nm and 150 mW of optical power, this high-performance LED provides a versatile basis for surface and air disinfection applications where a longer UV wavelength is desired. Its compact 3.5 x 3.5 mm SMD package allows for easy integration into professional systems.
The LED is pre-mounted on a 10 x 10 mm aluminum circuit board. This design significantly improves heat dissipation and simplifies installation in existing technical environments – a clear advantage for industrial applications with high demands on operational reliability and service life.
- Series: S3535-H
- Wavelength: 295 nm (UVB)
- Power: 150 mW
- Risk group: 3 (EN 62471)
- Dimensions (L x W x H): 3.5 x 3.5 x approx. 1.6 mm
- Assembly: pre-assembled on 10 x 10 mm aluminum board
Bolb – Specialist for UV LED technology
Bolb Inc. is one of the leading manufacturers of high-performance UV LEDs, offering solutions for industrial applications where efficiency, quality, and reliability are paramount. The S3535-H series is known for its compact design and high radiant output.
Safety instructions for using UVB LEDs
UVB radiation can also be dangerous to the eyes and skin. Operation should only be carried out with appropriate protective clothing and shielding. Reflections from metal and glass surfaces should be taken into account.
- Protective measures: UV protective goggles, gloves, UV-absorbing clothing
- Exposure: Avoid direct contact with UV radiation
- Reflections: Reflective surfaces can reflect UV radiation
FAQ about the Bolb S3535-H UVB SMD LED (295nm)
- What is the effect of 295 nm UV light?
The wavelength is in the UVB spectrum and offers a moderate antimicrobial effect that is used specifically in certain applications.
- Is the LED suitable for private use?
No, the LED is intended for industrial use. Professional handling and protective measures are required.
- What applications are conceivable?
Suitable for air disinfection, material treatment, and special applications in laboratory environments.
As a specialist in LED technology, LUMITRONIX offers high-quality components for professional applications. Our many years of experience enable individual consulting and customized solutions. Learn more about Bolb UV LEDs and offers for large customers here.
Bolb S3535-H UVC SMD-LED, 265nm, 170mW: Powerful disinfection with deep action
The Bolb S3535-H UVC SMD LED combines high optical performance with a short wavelength, thus offering ideal conditions for effective germ reduction in industrial applications.
Efficient sterilization with 265nm UVC radiation
With a wavelength of 265 nm—the maximum effective wavelength for inactivating microorganisms—and an impressive optical power of 170 mW, the compact Bolb S3535-H is ideal for demanding applications in air, water, and surface disinfection. The robust SMD design with a 3.5 x 3.5 mm package enables easy integration even in limited space.

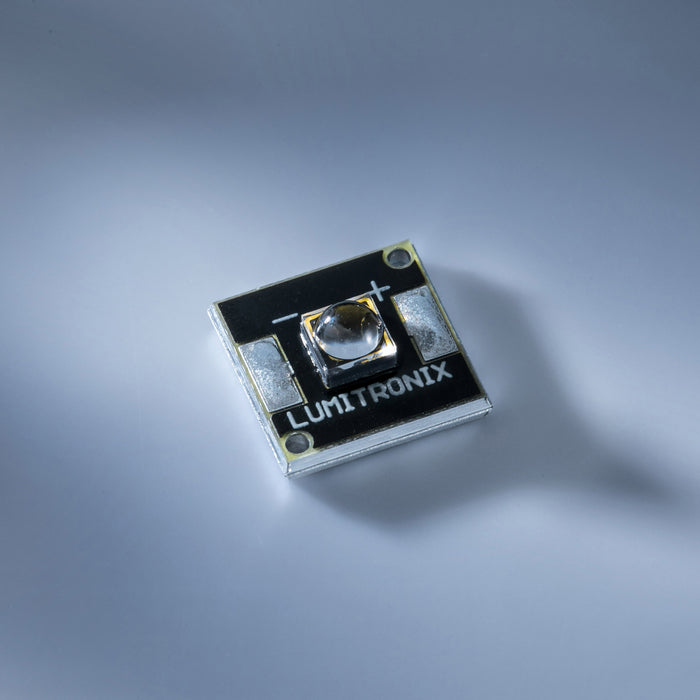

The LED is pre-assembled on a 10 x 10 mm aluminum printed circuit board (MCPCB). This not only facilitates installation into existing systems, but also significantly improves thermal management thanks to the thermal interface – a crucial factor for the service life and performance of UVC LEDs.
- Series: S3535-H
- Wavelength: 265 nm
- Power: 170 mW
- Risk group: 3 (EN 62471)
- Dimensions (L x W x H): 3.5 x 3.5 x approx. 1.6 mm
- Mounting: pre-assembled on 10 x 10 mm MCPCB
Bolb – Specialist for UV-C LED technology
Bolb Inc. is a leading manufacturer of innovative UVC semiconductor technologies and focuses on the development of particularly powerful UV LEDs for professional use. Their high radiant output combined with a compact design makes Bolb LEDs the first choice for industrial applications in sterilization and disinfection.
Safety instructions for using UVC LEDs
The intense UVC radiation from this LED can be harmful to skin and eyes. Operation should only be carried out with appropriate protective measures. Be aware of possible reflections and ensure appropriate shielding from the radiation.
- Protective measures: UV protective goggles, gloves, UV-blocking clothing, face shield if necessary
- Exposure: Avoid direct contact with skin and eyes
- Reflections: Be careful with reflective materials such as metal or glass
FAQ about the Bolb S3535-H UVC SMD LED
- Is the Bolb S3535-H suitable for home use?
No, this LED is intended exclusively for industrial applications. The intense UVC radiation requires professional protective measures.
- How can I protect myself from UVC radiation when using it?
Wear UV-protective goggles, UV-shielding clothing, and gloves. Avoid any direct contact with the radiation.
- What do I need to consider regarding reflections?
UVC light can be reflected by shiny surfaces. Reflective materials in the work area should be avoided or covered.
LUMITRONIX is your experienced partner for high-performance LED solutions. With over 20 years of experience and highly specialized production, we supply reliable components for professional applications – including UVC disinfection. Learn more about our Bolb products and receive customized advice for your project.
