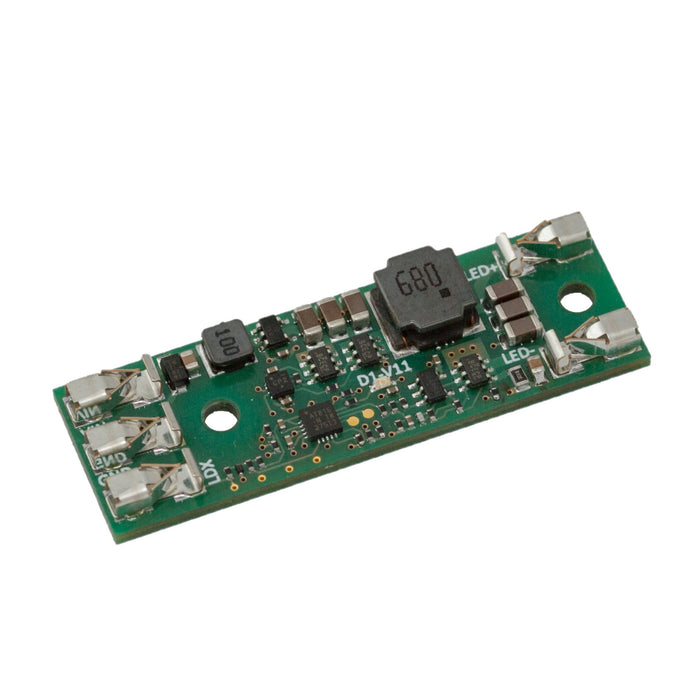

LEDIM/D1, PWM+PotDim driver, flicker free

LEDIM/D1: Highly efficient PWM+PotDim driver for maximum lighting quality

Versatile dimming controls for flexible application possibilities

The LEDIM/D1 constant-current driver not only offers reliable and interference-resistant dimming via potentiometer, but also enables PWM dimming - without any additional modification or settings. This makes this LED driver suitable for a wide range of lighting projects and offers maximum flexibility.

Simple installation for individual lighting solutions

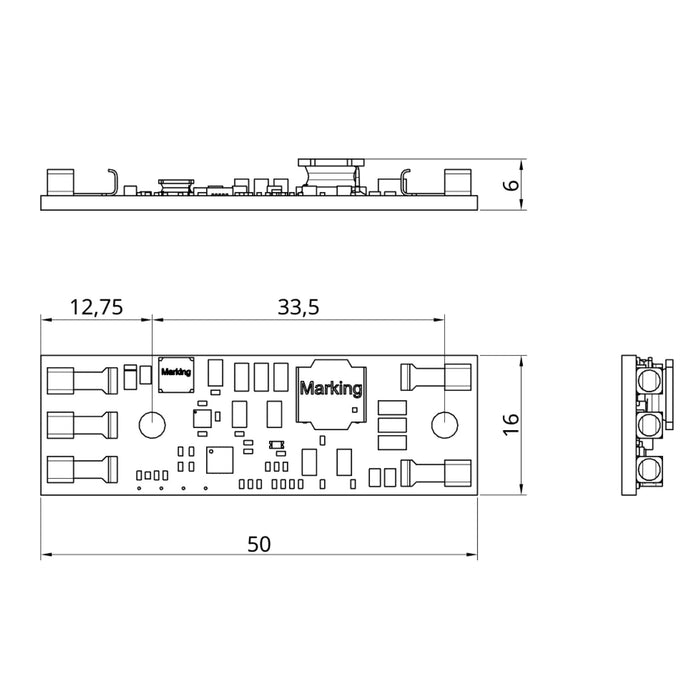

Thanks to its compact dimensions of only 50 x 16 x 6 mm, the LEDIM/D1 driver can also be used in very space-saving lighting concepts. The tool-free cabling concept enables simple and fast installation.

LEDIM quality - For permanent, flicker-free lighting

LEDIM is a German start-up specialising in high-quality lighting components. Experienced partners from various industries are part of this company that is dedicated to realising sophisticated products. With the LEDIM/D1 driver, you get a quality product made in Germany.

Features of the LEDIM/D1 PWM+PotDim driver

• Technology: Highly efficient, single-channel constant-current LED driver
• Dimming: Fully analogue and PWM dimming
• Light quality: 100% flicker-free light
• Flexibility: Dimming down to zero possible
• Power supply: Supports supply voltage up to 24 VDC
• Compactness: Minimalist design for space-saving applications

FAQ about LEDIM/D1 PWM+PotDim driver

1. How does PWM dimming control work with the LEDIM/D1?
   The PWM control signal can be connected directly to the corresponding "LDX pin" without any modifications or adjustments, as an alternative to potentiometer dimming.


2. What kind of luminaires can the LEDIM/D1 control?
   The LEDIM/D1 is ideal for controlling all types of luminaires where high quality of light is important. For example, it can be used for ceiling luminaires, industrial luminaires, floor luminaires, wall luminaires, pendant luminaires.


3. How many LEDs can the LEDIM/D1 supply?
   The LEDIM/D1 has an output current of 500 mA. It can supply several LEDs/COBs/engines connected in series, depending on the respective forward voltages.

With LED technology from LUMITRONIX, lighting solutions can be realised that are not only extremely long-lasting and energy-efficient, but also contribute to a sustainable economy. Also find out about our attractive business customer services.

LEDIM/D1, PWM+PotDim driver - your partner for high-quality and efficient lighting control

Optimised flexibility and performance with the LEDIM/D1, PWM+PotDim driver

The LEDIM/D1 driver is a constant current control device that is ideal for applications where light quality and flicker-free performance are important. With its compact dimensions and flexible dimming options via potentiometer or PWM, the D1 offers a wide range of uses for creative lighting solutions.

Innovation and quality "Made in Germany

As a product from LEDIM, you can count on the highest quality and expertise from Germany with the D1. As a start-up in Berlin, LEDIM stands for high-quality and sophisticated product solutions through the combination of experienced developers and partners from the luminaire, LED and retail sectors. At LEDIM, and in a broader sense at LUMITRONIX, the focus is on the sustainable manufacture of LED products. Only high-quality materials are used, guaranteeing the longevity of our products. Here you can find more information about our services for business customers.

Features of the LEDIM/D1, PWM+PotDim driver

• Efficiency: Intelligent single-channel constant current LED driver with full analogue dimming and PWM dimming support
• Quality: 100% flicker-free
• Flexibility: Dim-to-zero - dim down to zero
• Performance: Output current 700 mA, supply voltage up to 24 VDC
• Practical: Tool-free wiring concept for ultra-compact applications
• Variability: Can supply multiple LEDs/COBs/engines connected in series
• Operability: Control via potentiometer or PWM control signal

Frequently asked questions about the LEDIM/D1, PWM+PotDim driver

1. Can the LEDIM/D1 driver supply several LEDs simultaneously?
   Yes, the driver can supply several LEDs/COBs/Engines connected in series, depending on the corresponding forward voltages.


2. How is the LEDIM/D1 driver dimmed?
   Dimming can be done either via a potentiometer or a PWM control signal.


3. Is the LEDIM/D1 driver compatible with different light sources?
   Yes, the driver is ideal for controlling all types of luminaires, e.g. ceiling luminaires, industrial luminaires, floor luminaires, wall luminaires, pendant luminaires, etc.

Lighting solutions with sustainability and quality at LUMITRONIX

If you never compromise on quality and innovation, LUMITRONIX is the right partner for you. With 20 years of experience in the industry, we are your address for LED lighting solutions. By producing LED modules and components in Germany, we emphasise ecological and economic sustainability and offer small businesses and tinkerers the opportunity to work with high-tech products that are both innovative and resilient.
