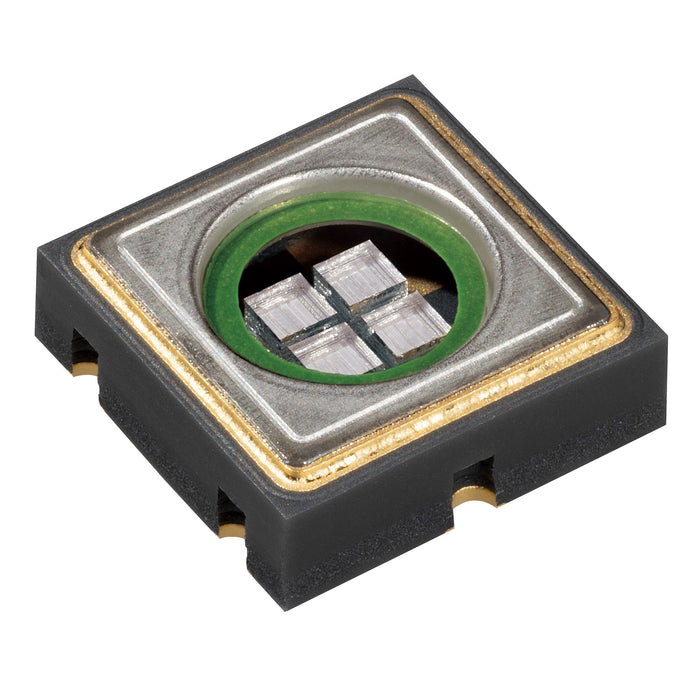

Nichia NC4U334BR UVC SMD LED, 280nm, 200mW

UV-C LED with 280 nm for efficient disinfection

Operates on wavelength 280 nm
Power 200 mW for high efficiency
Ideal for disinfection and sterilisation
Compact and lightweight for flexibility

€79,36 - €79,36

€79,36

€79,36 - €79,36

€79,36

Availability:

in stock, ready to be shipped

Shipping and price information

13,90€ to UK and within the EU.
All countries/shipping rates.

Taxes and duties may apply outside the EU.

Prices incl. VAT and plus shipping. Comparison prices and discounts refer to the manufacturer's recommended retail price.

Payable with PayPal, ApplePay, AmazonPay, Mastercard, Visa, SOFORT

In step with innovation: Nichia NC4U334BR UVC SMD LED

The Nichia NC4U334BR UVC SMD LED combines impressive performance with high efficiency and is an effective tool in the fight against microorganisms. With its wavelength of 280 nm and optical power of 200 mW, it is ideally suited for highly efficient industrial disinfection applications.

Nichia NC4U334BR - In a class of its own

This model from Nichia's extensive product range belongs to the 334 series - a high-power UVC LED series known for its outstanding performance data. The NC4U334BR scores particularly well with its high efficiency and flexibility - thanks to its compact dimensions of 6.8 x 6.8 x 2.12 mm.

Features of the Nichia NC4U334BR

Type: High-Power UVC LED
Series: 334 series
Wavelength: 280 nm
Optical power: 200 mW
Risk group: 3 (EN 62471)
Dimensions (L x W x H):6.8 x 6.8 x 2.12 mm

Produced by Nichia - The world leader in LEDs

Nichia is the world's leading manufacturer of LEDs and the inventor of the blue (and therefore white) light-emitting diode. The company is constantly setting new standards in terms of efficiency, lifetime and brightness. As a distributor of Nichia's products, we are proud to be able to offer particularly attractive conditions and comprehensive advice.

Applications of the NC4U334BR

Disinfection: Ideal for water disinfection.
Sterilisation: Suitable for sterilisation of surfaces and air.

FAQ about the Nichia NC4U334BR

What is a UVC LED?
UVC LEDs emit ultraviolet light that is particularly effective at killing bacteria and viruses.

Why does the LED have a wavelength of 280 nm?
At this wavelength, the UV radiation is most effective for disinfection.

How is this LED operated?
Please refer to the manufacturer's data sheet for operating voltage and other technical data.

Safety instructions for use

Safety equipment: Use of safety goggles, gloves and suitable UV-shielding clothing is mandatory.
UV exposure: Avoid direct skin and eye contact.
Safety distance: No other persons should be in the radiation area.

Rely on the proven technology of leading manufacturers such as Nichia and take advantage of the expertise we offer at Lumitronix. Benefit from our many years of experience in LED technology and innovative solutions made in Germany.

Technical Details
SKU	38565
Brand	Nichia
Added	21.10.2021
Light colour	UV
Manufacturer code	NC4U334BR, u280/B200C-B240C/P16d22-P18d21
Power (W)	7.9 (W)
Voltage (V)	22.5 (V)
Electric Current (mA)	350 (mA)
Size (L x W x H)	0.68 cm x 0.68 cm x 0.21 cm
Weight	0.001 kg
Categories Nr. 37 in SMD LEDs (up to 1 W) Nr. 11 in UV(C) LEDs
